100-2325-001

Regular price $885.09
/

Foundation Carbon for Modern XC

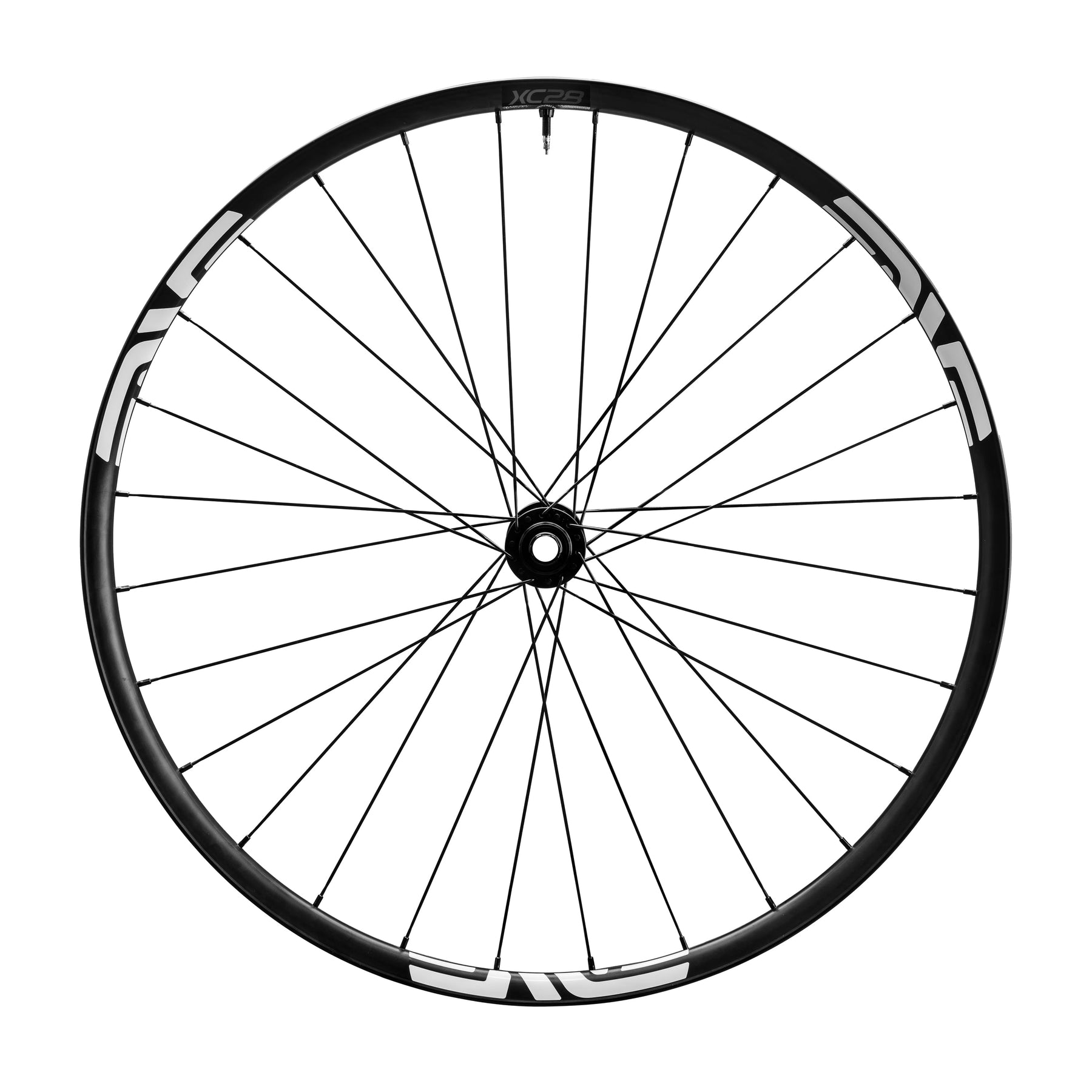

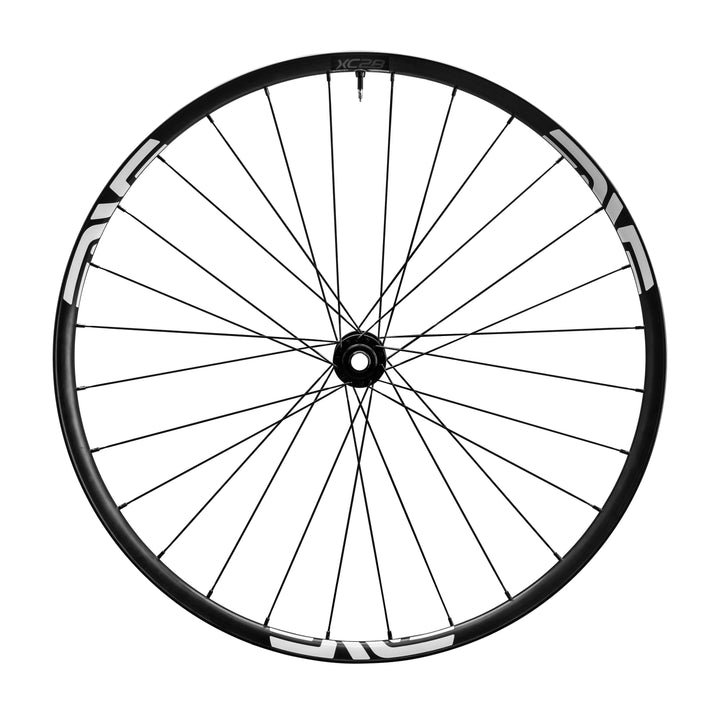

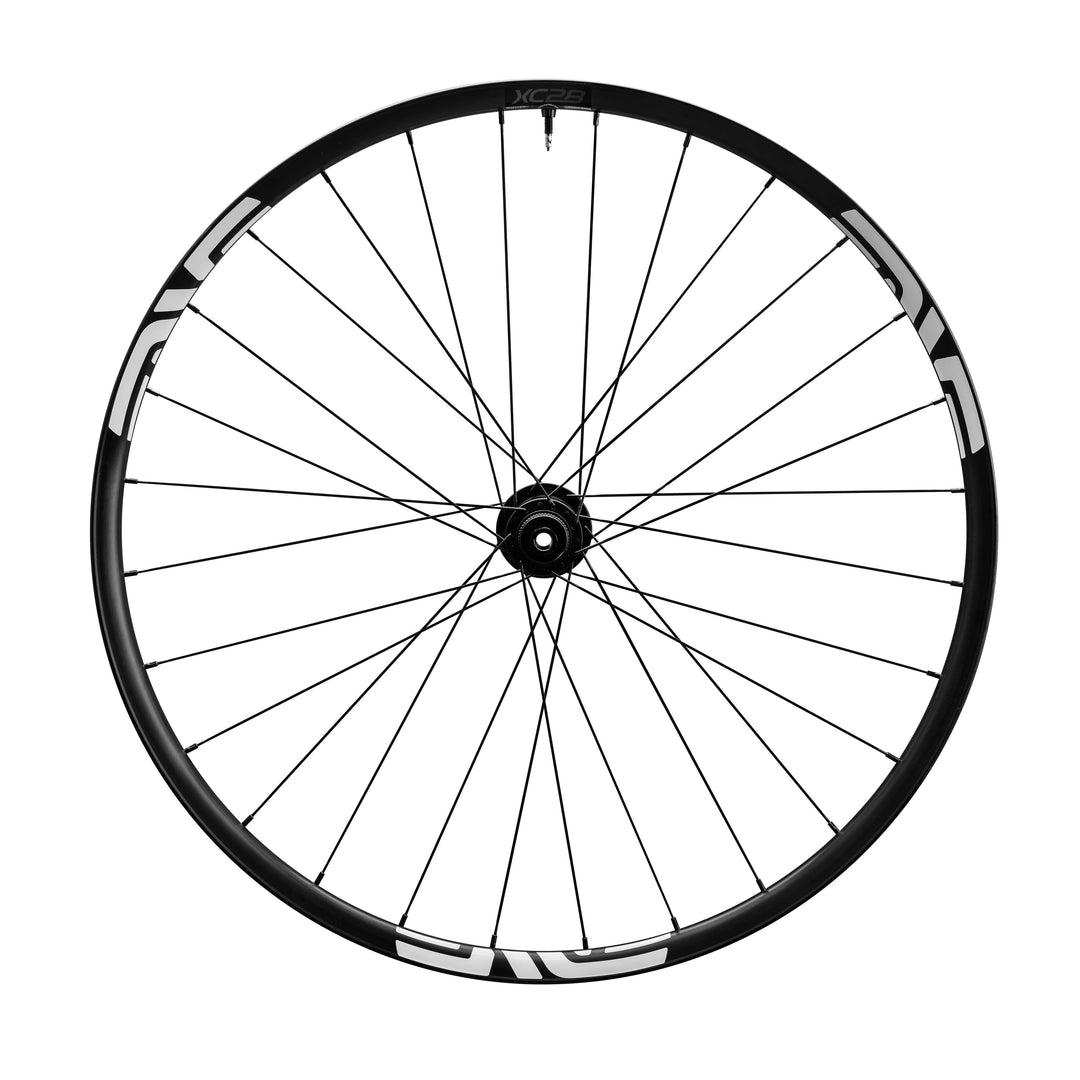

Born from the development of the latest M Series and inspired by the proven durability of the AM30, the new XC28 Carbon Wheel brings ENVE’s carbon expertise to riders who want high‑end performance at a more accessible price. The XC28 is aimed directly at the needs of today’s cross‑country and trail riders who want a light, responsive, and durable wheelset.

Wheel
Hub
Freehub
  • The XC28 is built for modern XC racers and trail riders, optimized around a 2.4” tire and an inner rim width of 28mm.
  • 1516g wheelset weight (+/- 3%)
  • ENVE Innerdrive Foundation hubs

Spec Table Front Rear
Spokes Sapim CX-Ray J-Bend
Hub ENVE Innerdrive Foundation ENVE Innerdrive - Foundation
Hub Spacing 15mm x 110mm 12mm x 148mm
Nipples Alpina Nylock Brass
Spoke Tension 120kgf
Brake Type Centerlock

Spec Table Front Rear
Effective Rim Diameter (ERD) 622mm
Internal Rim Width 28mm
Sidewall Width 3.8mm
Pinch Flat Technology Wide Hookless Bead
Hole Count 28
Depth 21mm
Tubeless Tape Width 32mm
Tubeless Valve Length 35mm 35mm
Hub Spacing 15mm x 110mm 12mm x 148mm
Spoke Tension 120kgf
Brake Type Centerlock

Spec Table Front Rear
Rim Weight 385g 385g
Wheel Weight 722g 824g
Wheelset Weight 1516g (Includes Tape and Valves - XD Freehub)

Spec Table Front Rear
Recommended Tire Size 2.25 - 2.4"
Maximum Tire Pressure 40 psi

Light, Durable, Affordable - You Can Have All Three

The Foundation line is built on the same principles as our premium M Series wheels, and the XC28 is no exception. A simplified laminate allows us to deliver a $1400 carbon wheelset without compromising the ride quality and durability ENVE is known for. Whether on a pure race bike or a downcountry rig, the XC28 delivers best-in-class performance.

Trickle Down Technology From M Series Wheels

Optimized around a 2.4” tire, the XC28 borrows shaping cues from the M5 and M6 to strike the ideal balance of compliance and control. The result is a wheel that tracks confidently through rugged sections while maintaining the efficiency and responsiveness XC riders demand.

WIDE HOOKLESS BEAD AND MOLDED SPOKE HOLES

POT-HOLE AND IMPACT PROTECTION
Potholes and unforeseen impacts are part of life, but that doesn’t mean they need to ruin your ride. The ENVE XC28 features ENVE’s patent-pending Wide Hookless Bead, which is a design element at the leading edge of the rim that dissipates impact energy and reduces the likelihood of pinch flatting your tubed or tubeless tire​

MOLDED SPOKE HOLE
ENVE’s patented process of molding spoke and valve stem holes results in rims that are stronger and lighter. Because carbon fiber gets its strength from continuous fibers, ENVE routes the fibers around the hole without cutting them, increasing the strength of each spoke hole. This technique pays large dividends in the final product by allowing for a lighter spoke face while improving rim strength.​
Because of this process, our spoke holes are capable of maintaining higher spoke tensions, greatly reducing the risk of spoke pull-through and the need to constantly true your wheels. Strong, light, and maintenance-free.

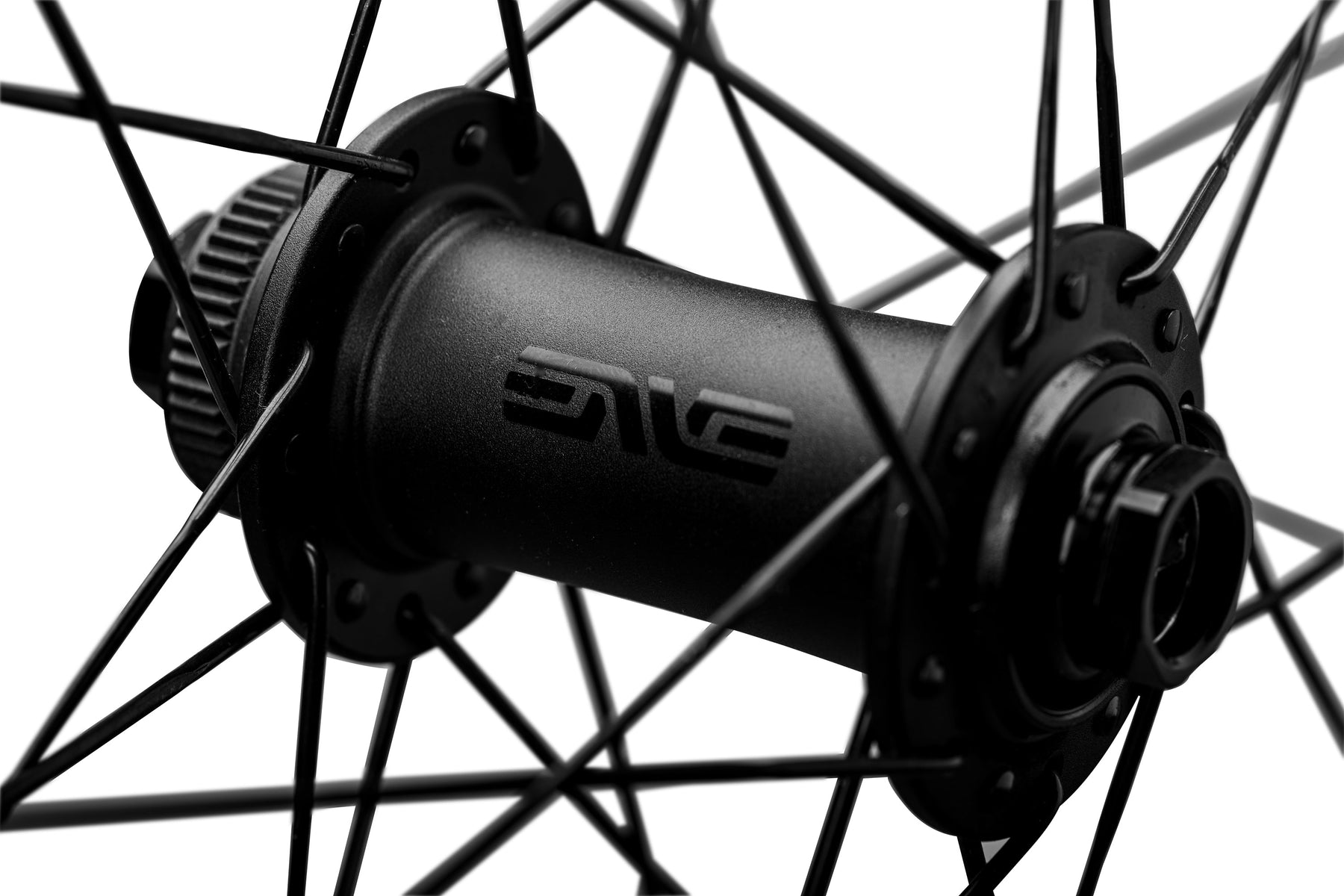

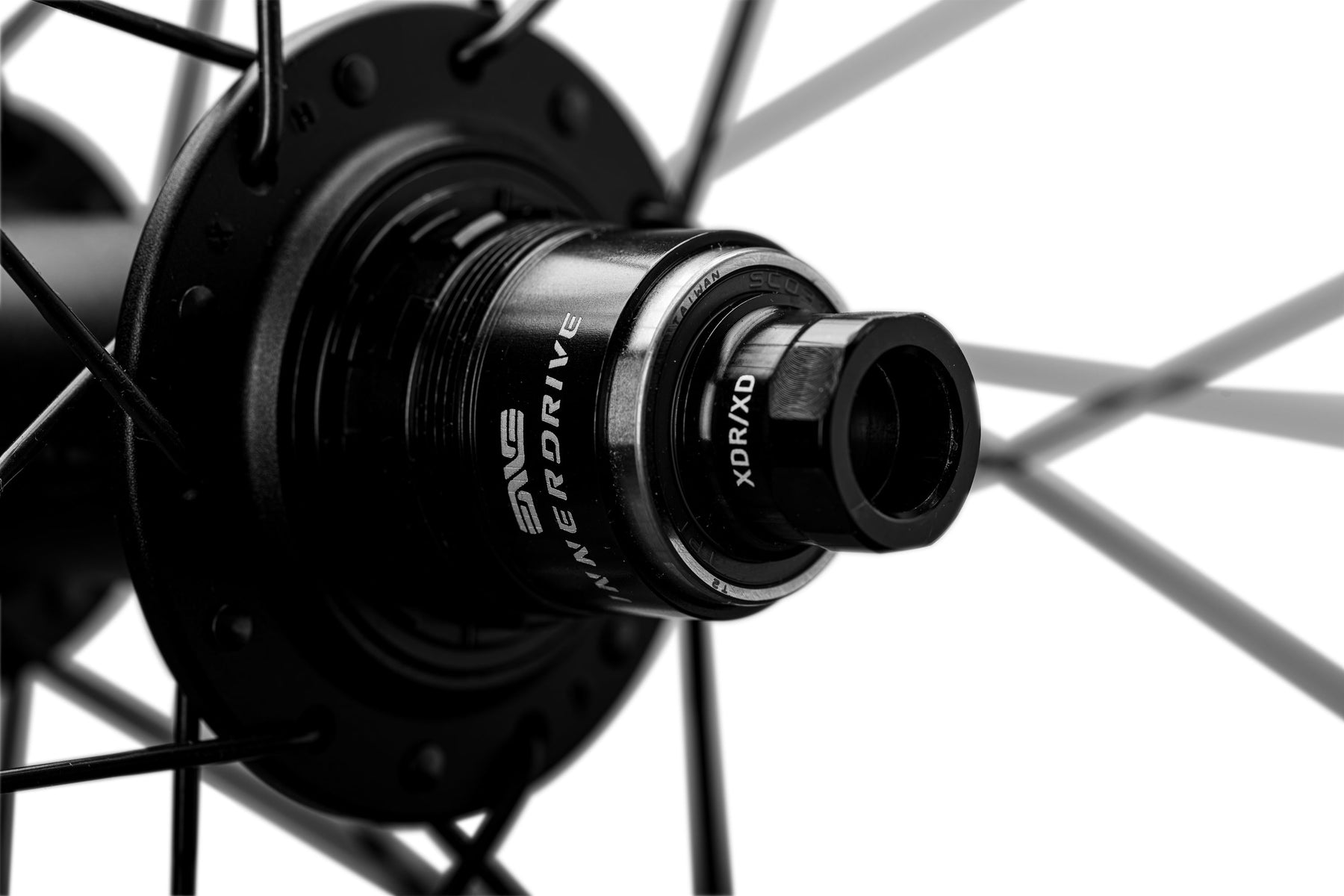

INNERDRIVE™ HUBS

INNERDRIVE™ represents the pinnacle of bicycle drive mechanisms. Oversized steel ratchets are positioned inboard and over the bearings, reducing stress on the axle and bearings while ensuring positive and reliable engagement.​

HIGHLIGHTS & BENEFITS​

  • 100% ENVE Designed oversized 42mm ratchet drive system​
  • Longer bearing life​
  • Reduced axle stress = less bearing drag and prolonged bearing life​
  • Drive component retention​
  • Perfect Preload – automatic preload adjustment​
  • Low maintenance & easy serviceability
