| Frame/Fork | ENVE MOG |
| Wheelset | Foundation AG25, 700c/Hub ENVE Foundation, F.H. N3W |
| Tire | Vittoria Terreno Dry, 700c x 40mm, Tan Wall |
| Tire Sealant | Orange Seal |
| Handlebar | ENVE SES AR IN-Route 49cm: 40cm 52cm: 40cm 54cm: 42cm 56cm: 42cm 58cm: 44cm 60cm: 44cm |
| Handlebar Tape | ENVE Black |
| Stem | ENVE Aero IN-Route 49cm: 80mm 52cm: 80mm 54cm: 90mm 56cm: 90mm 58cm: 90mm 60cm: 100mm |
| Computer Mount | ENVE Aero x K-Edge |
| Seatpost | ENVE G Series Dropper |
| Dropper Lever | ENVE Drop Bar Remote |
| Saddle | Selle Italia x ENVE SLR Boost Ti Rail 145mm |
| Bottle Cages | ENVE C.I.M. |
| Rotor Lockring, CL F&R | ENVE |
| Brake Rotor F&R | Campy Ekar 160mm CL |
| Shifter/Brake L&R | Campy Ekar 13 Spd |
| Front Deraileur | N/A |
| Rear Derailleur | Campy Ekar 13 Spd |
| Crank | Campy Ekar 49cm: 165mm 52cm: 170mm 54cm: 172.5mm 56cm: 172.5mm 58cm: 172.5mm 60cm: 175mm |
| Bottom Bracket | Campy Ekar T47-86mm |
| Cassette | Campy Ekar 13 Spd 9-42T |
| Chain | Campy Ekar 13 Spd C-Link 117 |
| Frame Material | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible |
| Fork Material | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible |
| Target Application | Gravel Racing/Riding/Exploration/Adventure |
| Sizes (cm) | 49, 52, 54, 56, 58, 60 |
| Fork Rake | 57, 55, 53 |
| Fork Axle to Crown | 395mm |
| Frame Size/Fork Rake | 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53 |
| Frame Weight | 950g +/- 2% (Size 56, Painted, No Hardware) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5" IS52 Upper and Lower |
| Seat Post Diameter | 27.2 |
| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Brake Rotor Compatibility | F: 160/180, R: 140/160 (Adapters Required) |
| Front Axle | 12x100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12x142 (Total Length: 168, TP:1.0, TL:14) |
| Minimum Tire Size | 700 x 36c |
| Optimal Tire Size | 700 x 40c-44c |
| Maximum Listed Tire Clearance | 700 x 50c |
| Frame Routing | ENVE IN-Route Internal |
| Water Bottle Capacity | 3 |
| Top Tube Mounts | Yes |
| Fender Mount Compatible | Yes |
| Wheel Size | 700C (650b Not Recommended) |
| Color | Pantone 7528C (Equivalent to Sand) |
Component Compatibility
| Handlebars | Gravel, SES AR, Compact, SES Aero Road |
| Stem | ENVE Aero, IN-Route System (80, 90, 100, 110, 120, 130) |
| Seatposts | ENVE Seatpost 27.2 300mm/400mm x 0mm Offset/25mm Offset - G Series Dropper Post 27.2 |
Drivetrain Compatibility
| Shimano Mechanical 1x | Yes |
| Shimano Mechanical 2x | Yes |
| Shimano Electronic Di2 (1x/2x) | Yes |
| SRAM Mechanical 1x | Yes |
| SRAM Mechanical 2x | No (MOG requires continuous housing for FD) |
| SRAM AXS (1x/2x) | Yes |
| Campy Mechanical 1x | Yes |
| Campy Mechanical 2x | No (MOG requires continuous housing for FD) |
| Campy Electronic EPS | Not Compatible |
CARGO BAY
The MOG debuts ENVE’s Cargo Bay, an integrated downtube storage solution that makes efficient use of unused space for stashing your flat tire repair kit, windbreaker, or anything else you choose to carry. Under the Cargo Door, two Cargo Bags allow for 36 cubic inches/0.6 liters of storage. It’s a fast and simple storage solution that can be appreciated by racers and adventurers alike.
PERFORMANCE GEOMETRY
With six frame sizes and three unique fork rakes, the MOG has been designed to ensure optimal handling regardless of frame size. Through design solutions, such as a solid right chainstay at the bottom bracket to reduce width, the MOG achieves the geometry required for performance-minded cyclists without compromising what it can do off the race course.

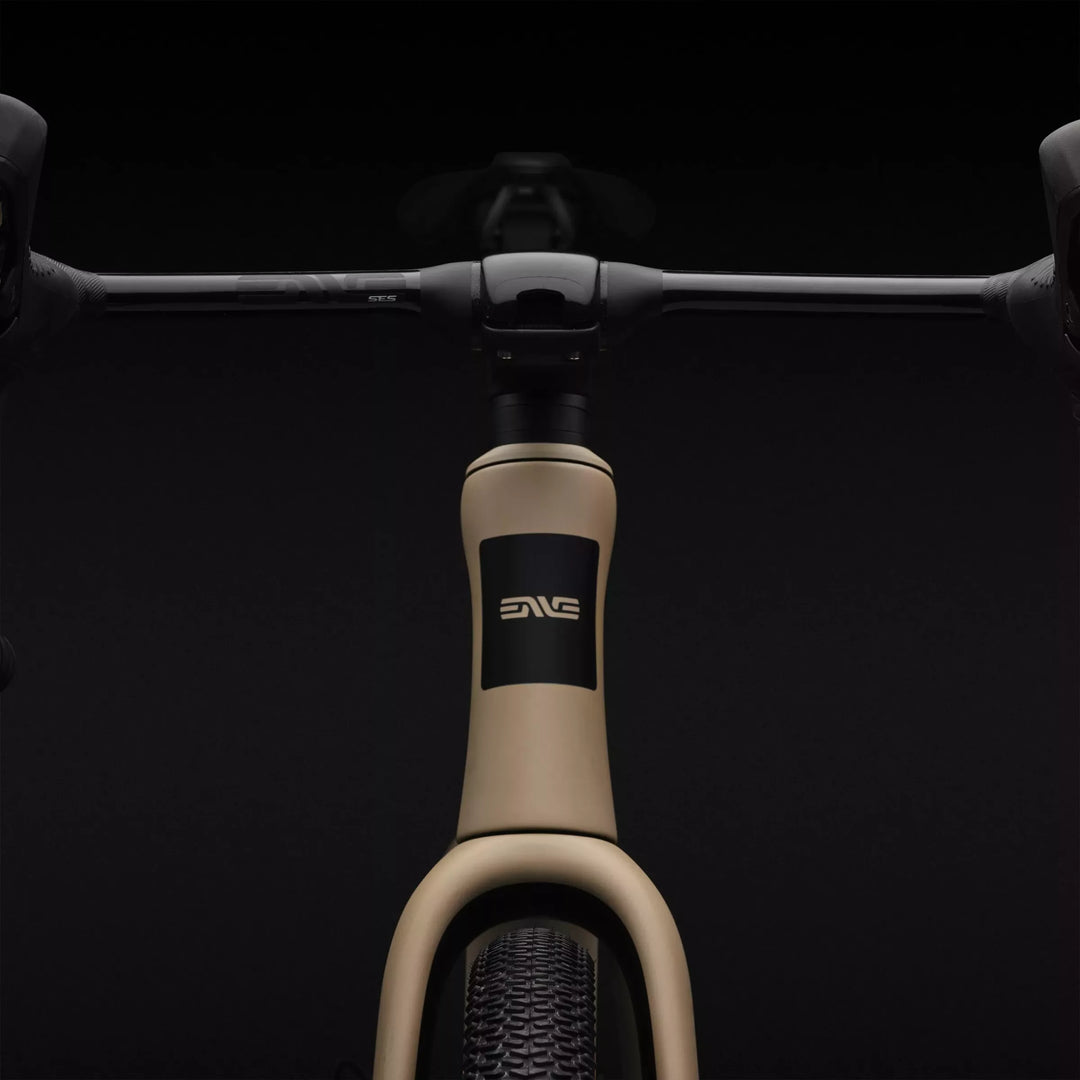

IN-ROUTE SYSTEM
ENVE’s IN-Route System is designed to hide hoses and wires from the wind, improving the bike’s aero performance with a practical and user-friendly solution. This doesn’t come at the expense of limiting drivetrain options – the MOG is compatible with most drivetrain brands, models, and configurations on the market.

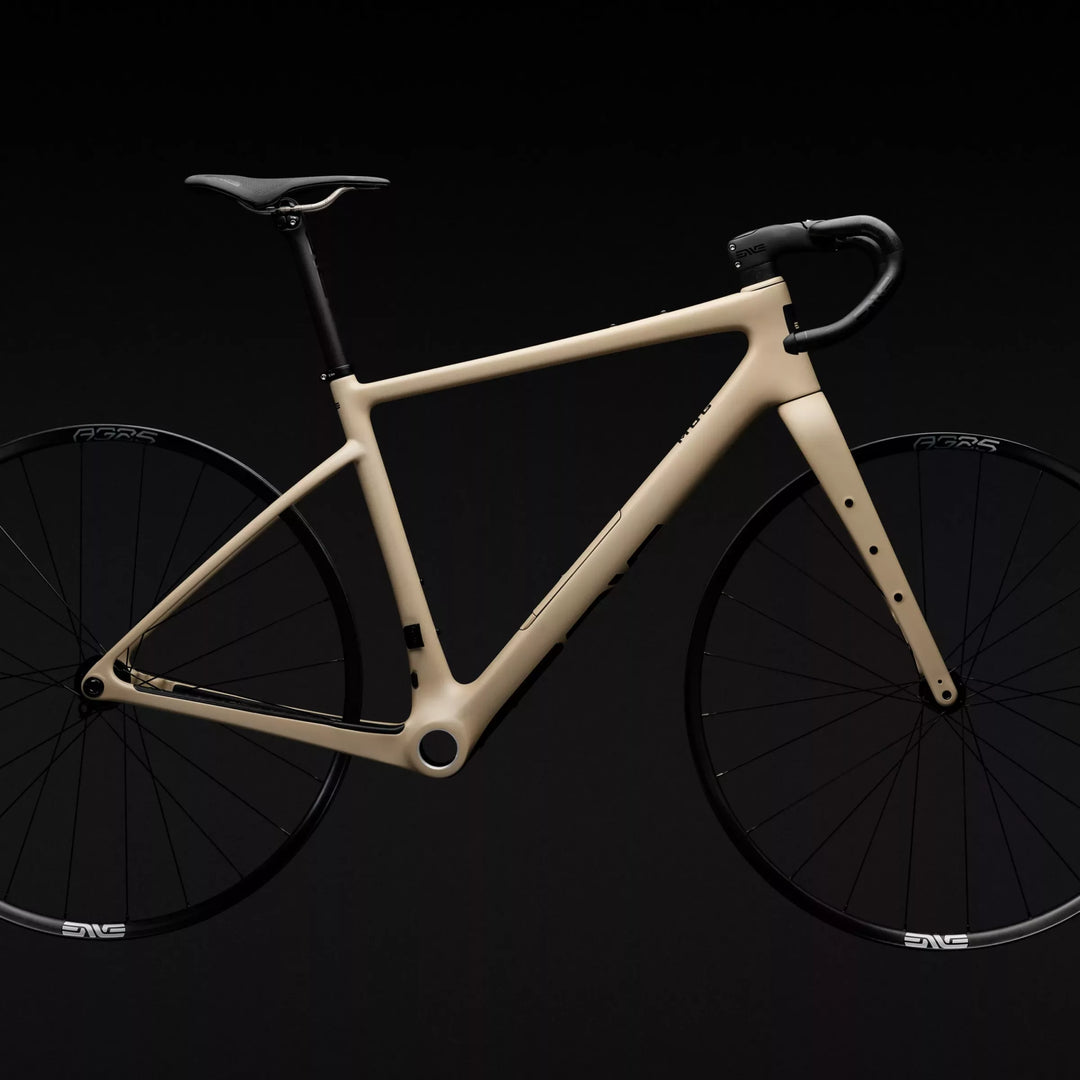

RACE, PERFORMANCE, OR ADVENTURE
The MOG is sold as a chassis-only, including the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, handlebar model, and seatpost type depending on your riding style and preferences. With four handlebar options and a choice of dropper seatpost, you’re able to build the exact MOG you want based on the ride experience you’re seeking.

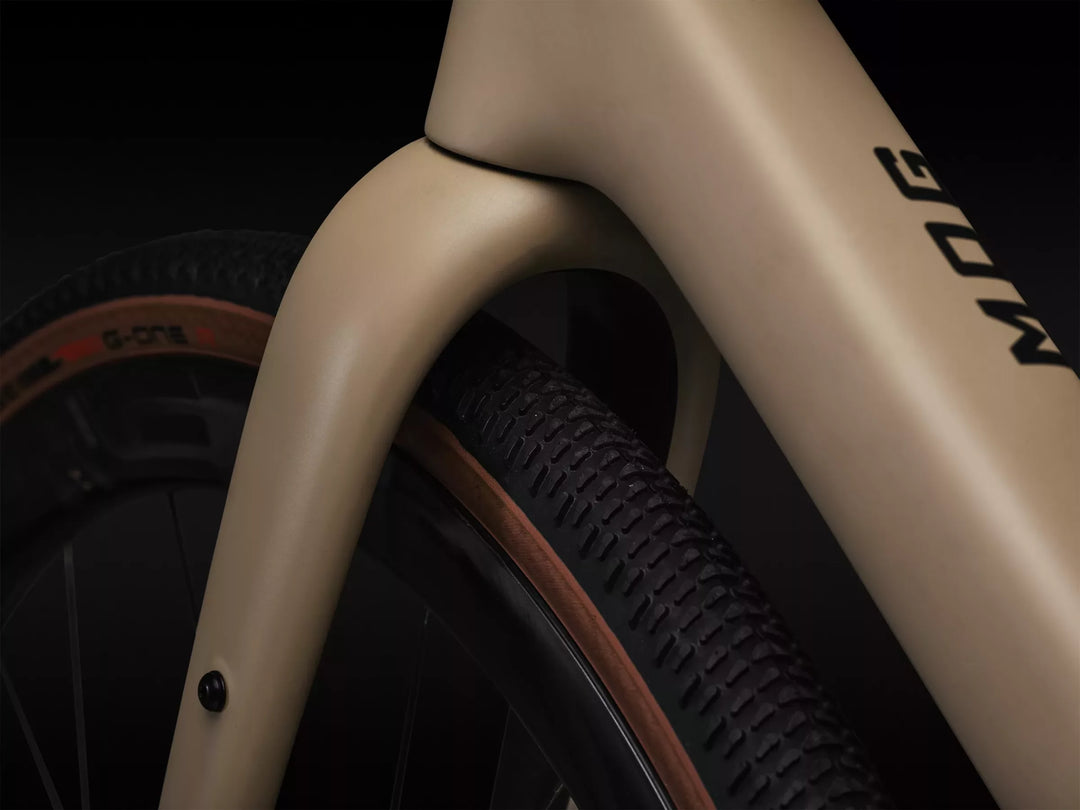

700C MAXIMALIST
With clearance for up to 700c x 50 mm, the MOG eliminates the complexities of flip chips and extra wheelsets so there’s no need to think about 650b again. You don’t have to use all 50 mm of it, but we assure you, you’ll sleep easier knowing it’s there. With geometry optimized around a 42 mm tire, the MOG’s versatility allows an expansive range of tire sizes from 36 mm up to 50 mm.
