ENVE Custom Road

Custom Road

A bike, fit for you.

From geometry to paint, to wheels and components,
each ENVE Custom is tailored to your specific wants and needs.

Rider Specific

fit & tune

At the foundation of performance is bike fit and geometry. If those two fundamentals are not established, all the engineering wizardry and space age materials in the world won't save your ride. You need an optimized fit and tuned geometry to give you the confidence and comfort needed to reach your performance potential.

GEOMETRY

CUSTOM ROAD

FIT FOR YOU

FIT FOR YOU

your dream build

Customize now

Race &

All Road Options

The ENVE Custom Road is available with two unique personalities–Race and All Road. While identical in appearance, each has been tuned for a range of specific tire sizes and rider styles. Race prioritizes agility and responsiveness with a shorter wheelbase. All Road prioritizes stability and control with a longer wheelbase.

Our goal is to deliver you a bike that fits – perfectly.

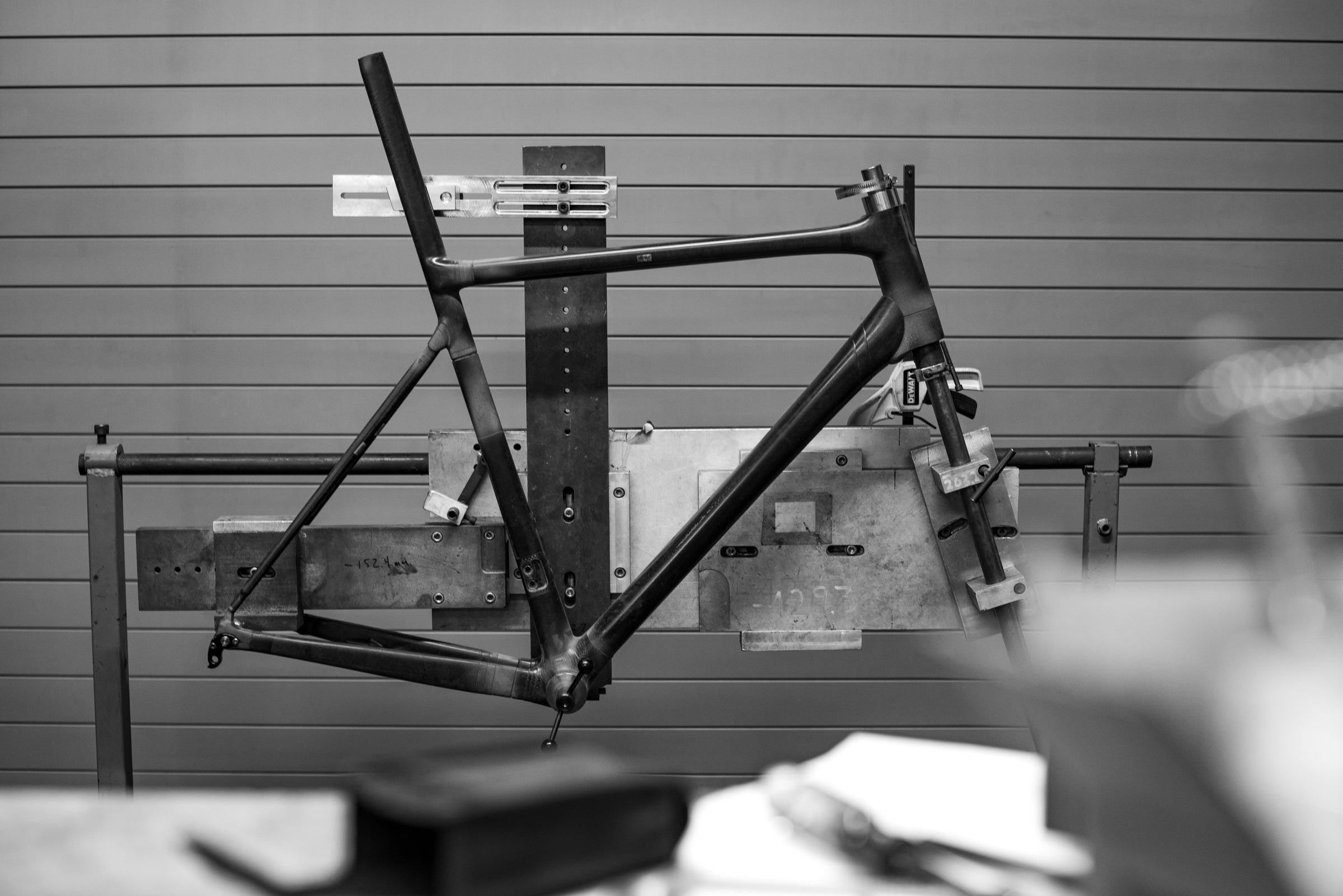

To make this possible, the Custom Road is constructed using a molding process that allows us to create a custom bike for virtually any fit. The result is a handcrafted, US-made bike, built specifically for you.

Customize your bike

After you reserve your spot in our production lineup, you can take your time customizing everything from geometry to paint color, and craft one-of-a-kind bike tailored to your needs.

An ENVE representative will work with you to finalize the details of your dream build and provide an estimated delivery date.

Custom Road Chassis starting at $8000.

	CHASSIS	SRAM RED eTap AXS SES	SRAM FORCE eTap AXS SES	Shimano Dura-Ace Di2 SES	Shimano Ultegra Di2 SES
Frame/Fork	Custom Road	Custom Road	Custom Road	Custom Road	Custom Road
Wheelset	—	SES	SES	SES	SES
Handlebar	SES AR One-Piece Bar and Stem Custom Size	SES AR One-Piece Bar and Stem Custom Size	SES AR One-Piece Bar and Stem Custom Size	SES AR One-Piece Bar and Stem Custom Size	SES AR One-Piece Bar and Stem Custom Size
Stem	SES AR One-Piece Bar and Stem Custom Size	SES AR One-Piece Bar and Stem Custom Size	SES AR One-Piece Bar and Stem Custom Size	SES AR One-Piece Bar and Stem Custom Size	SES AR One-Piece Bar and Stem Custom Size
Seatpost	ENVE Integrated Seat Mast Topper	ENVE Integrated Seat Mast Topper	ENVE Integrated Seat Mast Topper	ENVE Integrated Seat Mast Topper	ENVE Integrated Seat Mast Topper
Saddle	SLR Boost Carbon, 130mm or 145mm	SLR Boost Carbon, 130mm or 145mm	SLR Boost Carbon, 130mm or 145mm	SLR Boost Carbon, 130mm or 145mm	SLR Boost Carbon, 130mm or 145mm
Tire	—	SES Road Tire (25, 27, 29, 31)	SES Road Tire (25, 27, 29, 31)	SES Road Tire (25, 27, 29, 31)	SES Road Tire (25, 27, 29, 31)
Tire Sealant	—	Orange Seal, 4 Oz.	Orange Seal, 4 Oz.	Orange Seal, 4 Oz.	Orange Seal, 4 Oz.
Handlebar Tape	ENVE Black/Gray/White	ENVE Black/Gray/White	ENVE Black/Gray/White	ENVE Black/Gray/White	ENVE Black/Gray/White
Computer Mount	ENVE x K-Edge Aero	ENVE x K-Edge Aero	ENVE x K-Edge Aero	ENVE x K-Edge Aero	ENVE x K-Edge Aero

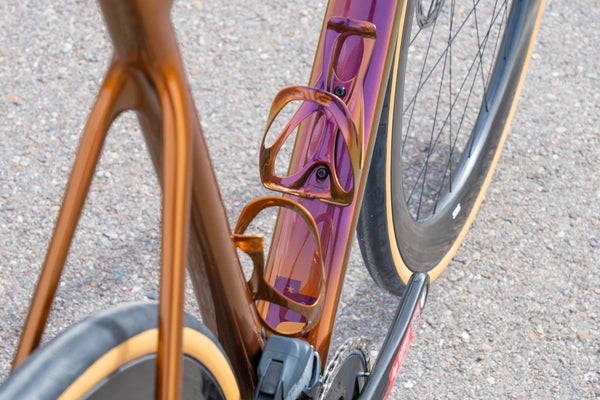

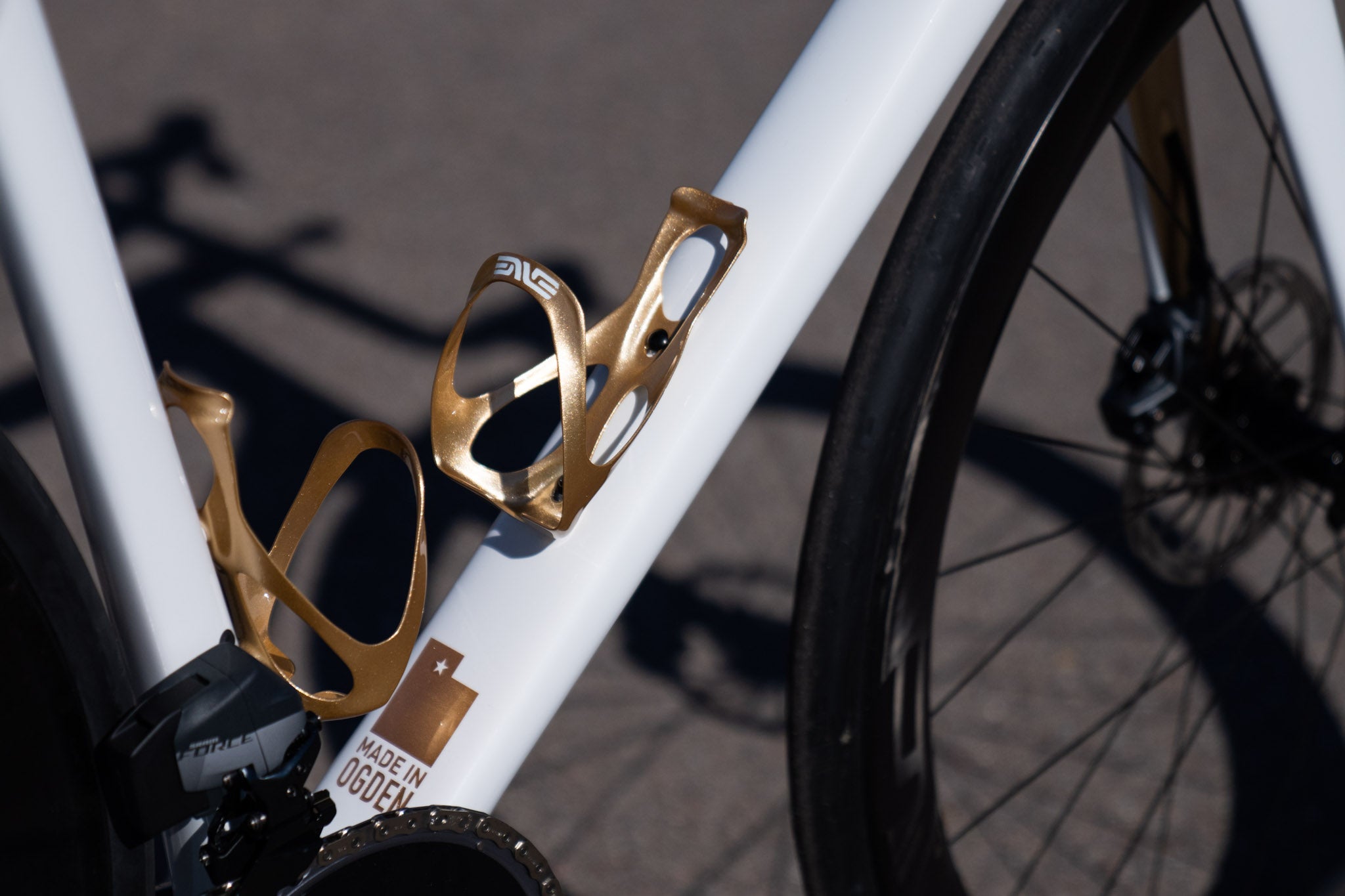

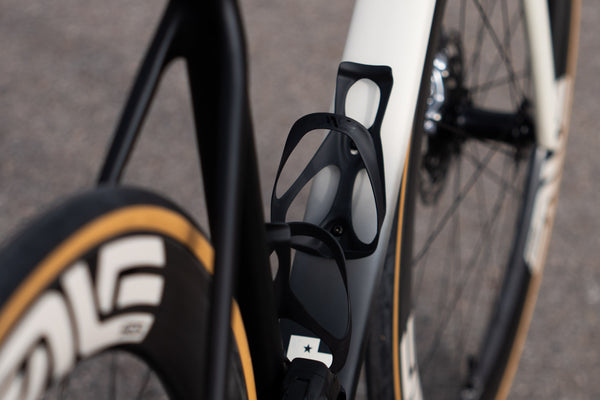

Bottle Cages	ENVE Carbon Road Cage	ENVE Carbon Road Cage	ENVE Carbon Road Cage	ENVE Carbon Road Cage	ENVE Carbon Road Cage
Rotor Lockring, CL F/R	—	ENVE, CL Inner	ENVE, CL Inner	ENVE, CL Inner	ENVE, CL Inner
Shifter/Brake L/R	—	Sram Red AXS	Sram Force AXS	Shimano Dura-Ace Di2	Shimano Ultegra Di2
Front Derailleur	—	Sram Red AXS	Sram Force AXS	Shimano Dura-Ace Di2	Shimano Ultegra Di2
Rear Derailleur	—	Sram Red AXS	Sram Force AXS	Shimano Dura-Ace Di2	Shimano Ultegra Di2
Brake Rotor F/R	—	Sram Centerline 160 CL	Sram Paceline 160 CL	Shimano Centerlock Ice Tech RT-CL900 160	Shimano Centerlock Ice Tech RT-CL800 160

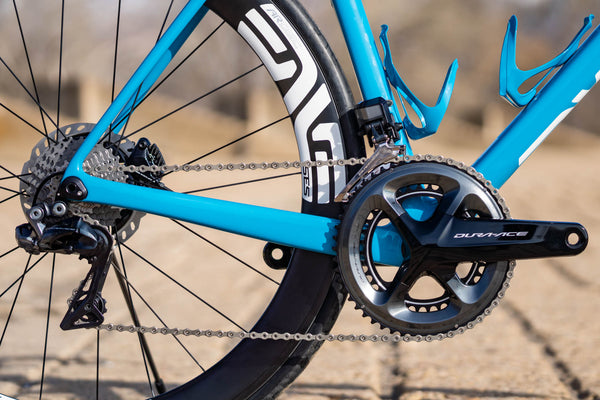

Crank	—	Sram Red 46/33t, 48/35t, 50/37t 165mm, 170mm, 172.5mm, 175mm, 177.5mm	Sram Force 46/33t, 48/35t 165mm, 170mm, 172.5mm, 175mm	Shimano Dura-Ace 50/34t, 52/36t, 53/39t 165mm, 170mm, 172.5mm, 175mm, 177.5mm	Shimano Ultegra 46/36t, 50/34t, 52/36t, 53/39t 165mm, 170mm, 172.5mm, 175mm
Bottom Bracket	—	386EVO	386EVO	386EVO	386EVO
Cassette	—	Sram Red, 10-26t, 10-28t, 10-33t	Sram Force, 10-26t, 10-28t, 10-33t, 10-36t	Shimano Dura-Ace, 11-25t, 11-28t, 11-30t, 12-25t, 12-28t	Shimano Ultegra, 11-25t, 11-28t, 11-30t, 11-32t, 12-25t
Chain	—	Sram Red	Sram Force	Shimano Dura-Ace	Shimano Ultegra
Battery Charger	—	Sram AXS Charger	Sram AXS Charger	Shimano Di2 Charger	Shimano Di2 Charger
MSRP $ USD	$8,000	$15,240	$13,894	$14,810	$13,872

Frame Material	ENVE M.O.D Carbon
Fork Material	ENVE M.O.D Carbon
Target Application	Road Race/Performance or Endurance
Sizes (cm)	Custom (∼47cm, ∼50cm, ∼52cm, ∼54cm, ∼56cm, ∼58cm, ∼60cm; +/- 1cm)
Fork Rake	55, 51, 47, 43, 39 (determined during fit)
Frame Weight	850g +/- 2% (Size 56, Unpainted)
Headset	ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing	1.5″ IS52 Upper and Lower
Seat Post Diameter	ENVE Integrated Seat Mast Topper
BB Type	386EVO
Brake Mount	Flat Mount
Front Axle	12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle	12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size	25c
Optimal Tire Size	27c-32c
Maximum Listed Tire Clearance	35c
Frame Routing	Internal

FIT STACK LIMITATIONS ARE AS FOLLOWS:

Max headtube length = 230mm
Max fork steerer-tube length = 400mm
Max steerer-tube spacer stack = 40mm
Max FIT Stack with 230mm headtube + AR Bar Stem Combo + 40mm of spacers =720mm
Max FIT Stack with 230mm headtube + AR Rise Stem + AR Handlebar + 40mm of spacers =760mm

Handlebars	ENVE SES AR One-Piece Bar and Stem – Custom Size
Stem	ENVE SES AR One-Piece Bar and Stem – Custom Size
Seat Posts	Integrated Seat Mast Topper

Aerodynamics Front and Center

Tapping into our experience developing rim shapes in the world's fastest frames, the Custom Road delivers leading aerodynamic efficiency and achieves our design goals for strength, stiffness, and versatility.

Integrated for Speed

The IN-Route front-end design routes wires and hoses through the bar, stem, and headset where they're secured using ENVE's anti-rattle frame finishing kit. This allows internally routed hoses and wires to remain silent, out of sight, and out of the wind. Featuring the SES AR One-Piece Bar to maximize the aerodynamic benefits of the streamlined design.

Integrated Seatmast and Topper

Allows for a reduction in weight and a more compliant ride. In addition, the seat mast topper uses ENVE's tried and proven clamp mechanism and offers 35mm of height adjustability should your fit needs change.

ENVE x K-EDGE COMBO MOUNT

In collaboration with K-Edge the Custom Road’s computer mount integrates cleanly with the SES AR One-Piece Bar and ensures secure retention of your cycling computer + light or camera.

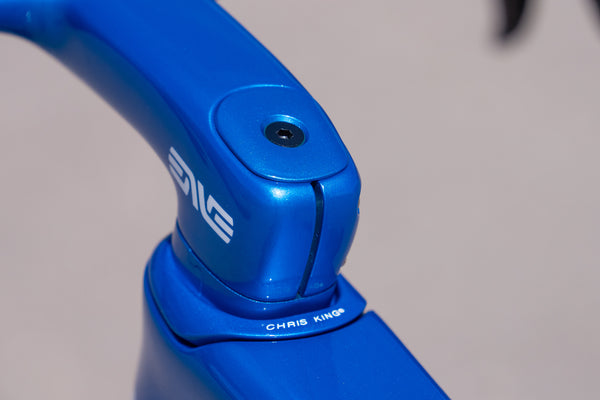

Chris King Aeroset™ Headset

In a collaboration with Chris King Precision Components, we developed the Aeroset, an all new internally routed headset designed to deliver precise handling and a clean integrated aesthetic.

ENVE X SCICON AEROCOMFORT 3.0 TSA TRAVEL CASE

Each chassis, rolling chassis, and complete bike is delivered in a custom ENVE x Scicon Aerocomport 3.0 TSA travel case that allows for a five-minute pack job while ensuring your critical adjustments remain untouched.

“I wanted to let you know that I did receive my new Custom Road yesterday and I am beyond pleased with the final product. Your process is absolutely dialed in, because this bike nailed the fit, perfectly. Amazing work!

Hats off! Thank you guys for a great experience!"
