100-2118-007

Regular price $1,400.00
/

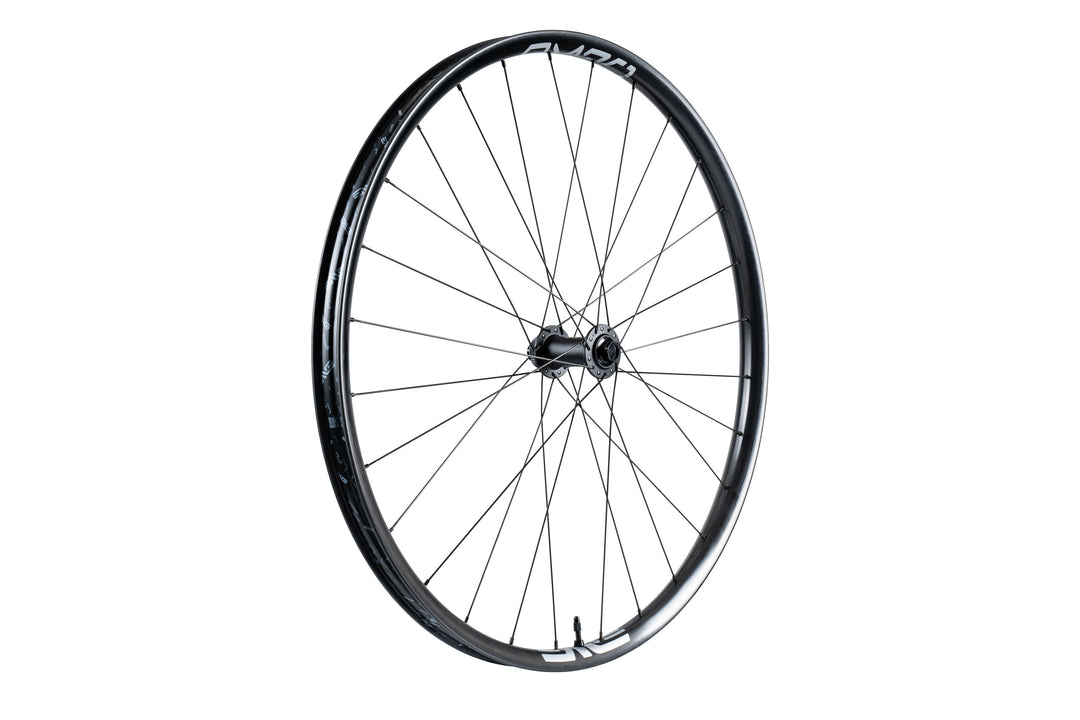

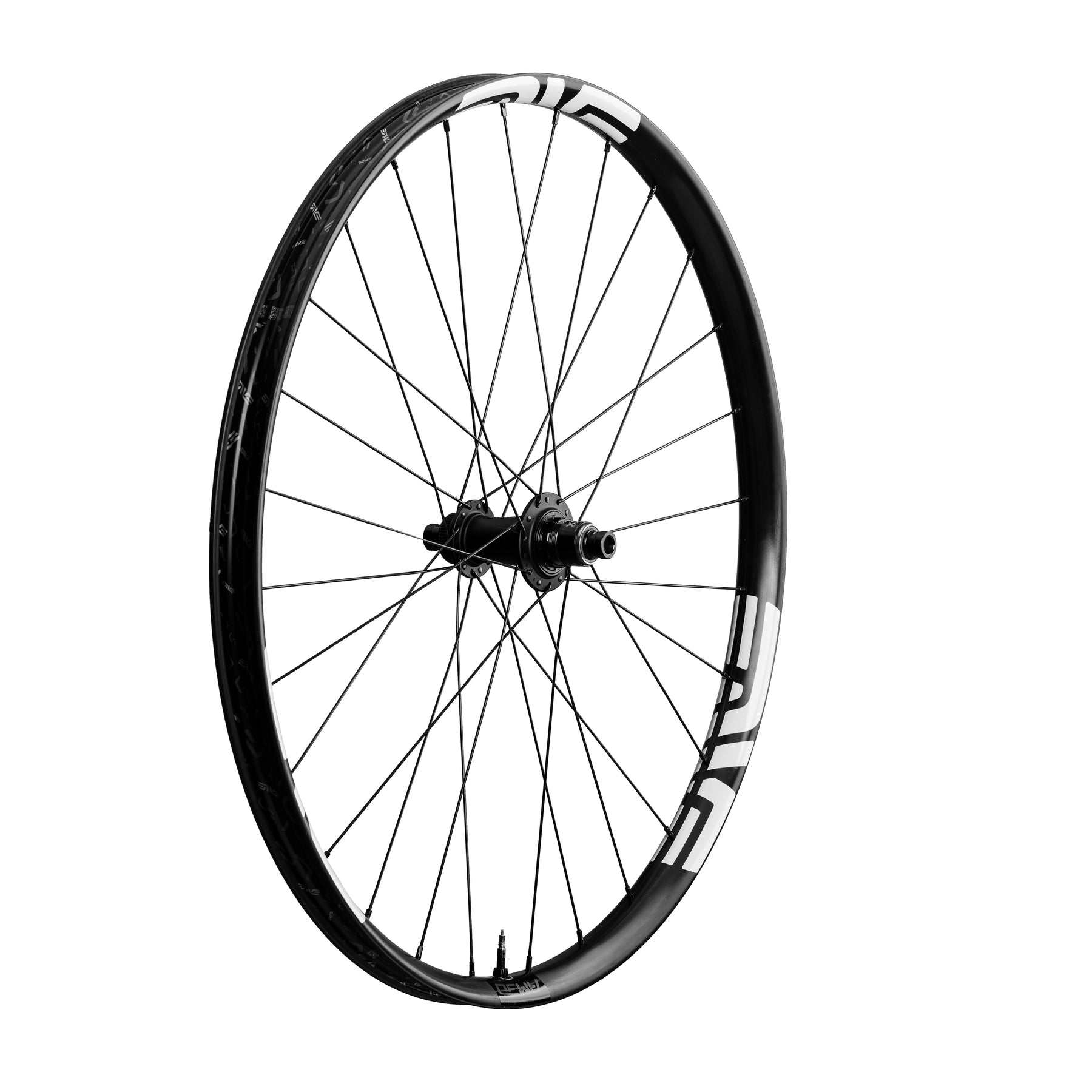

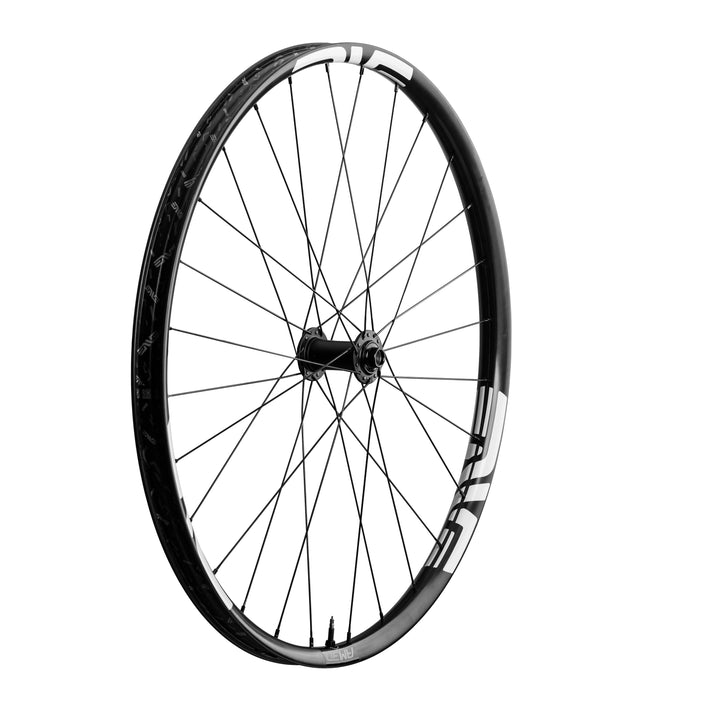

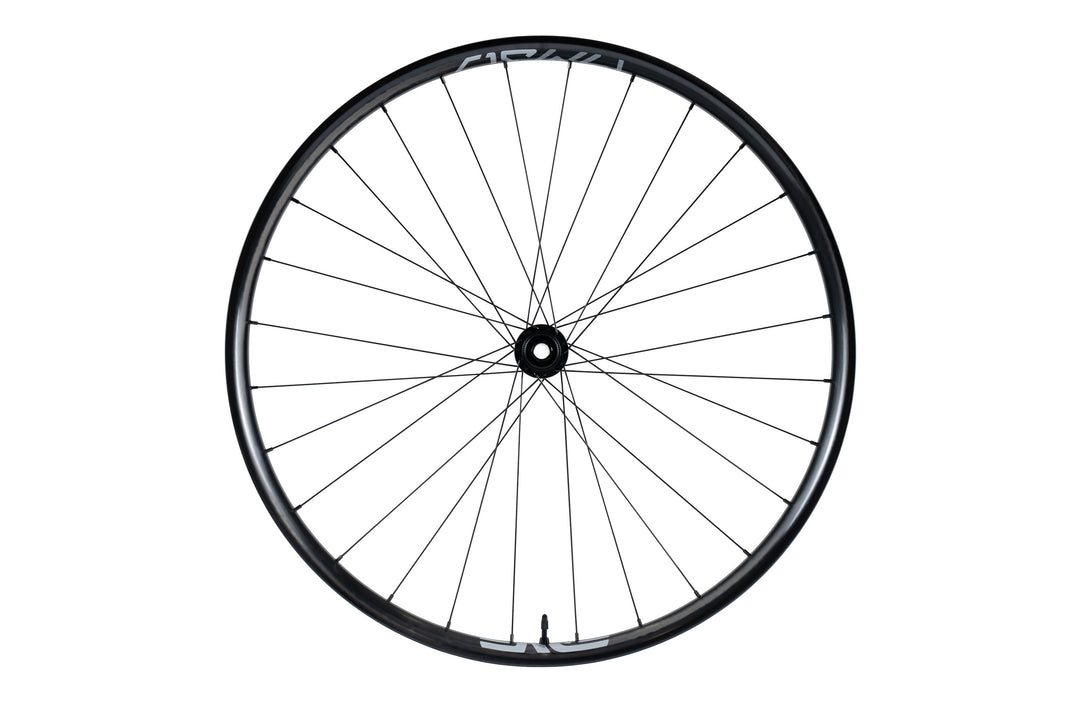

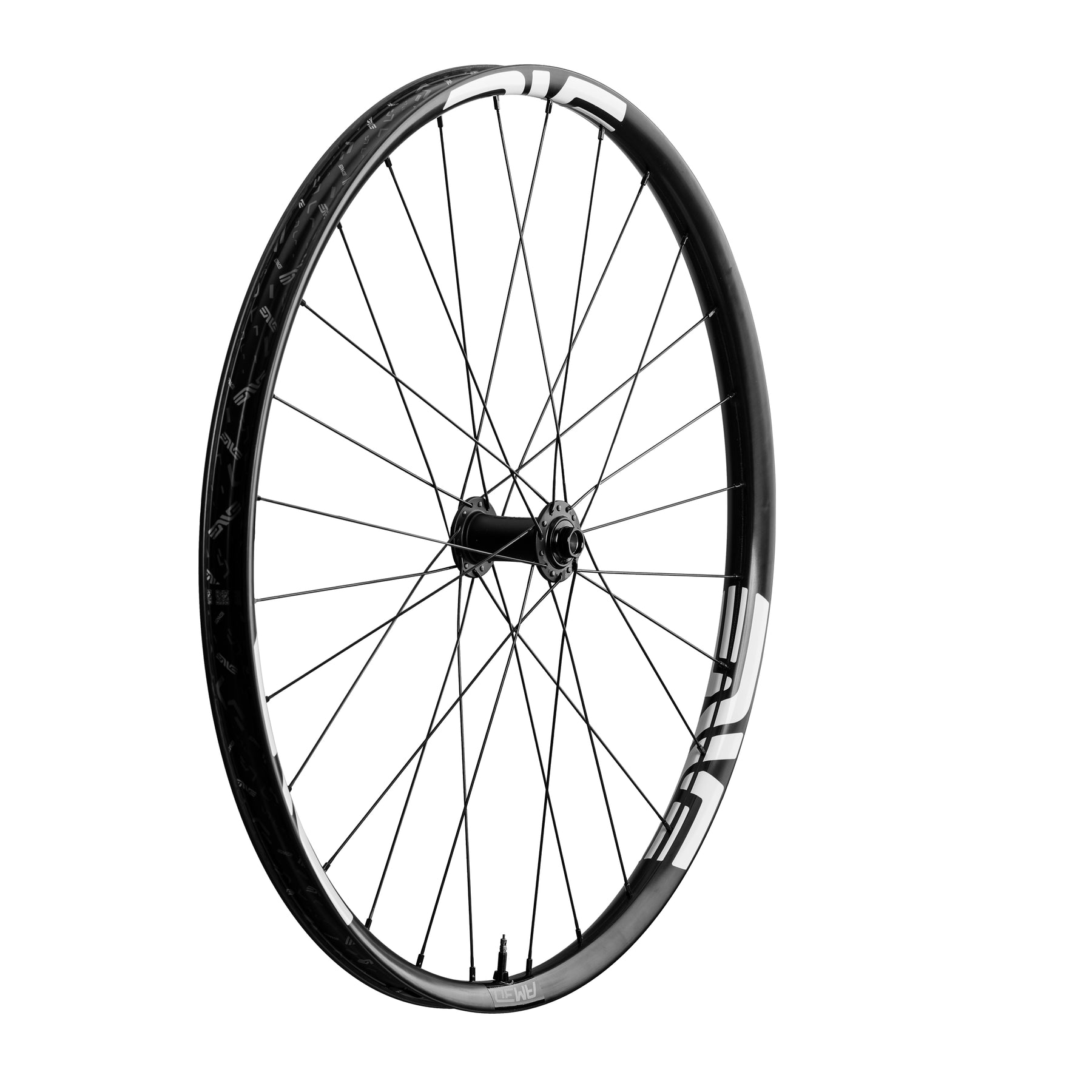

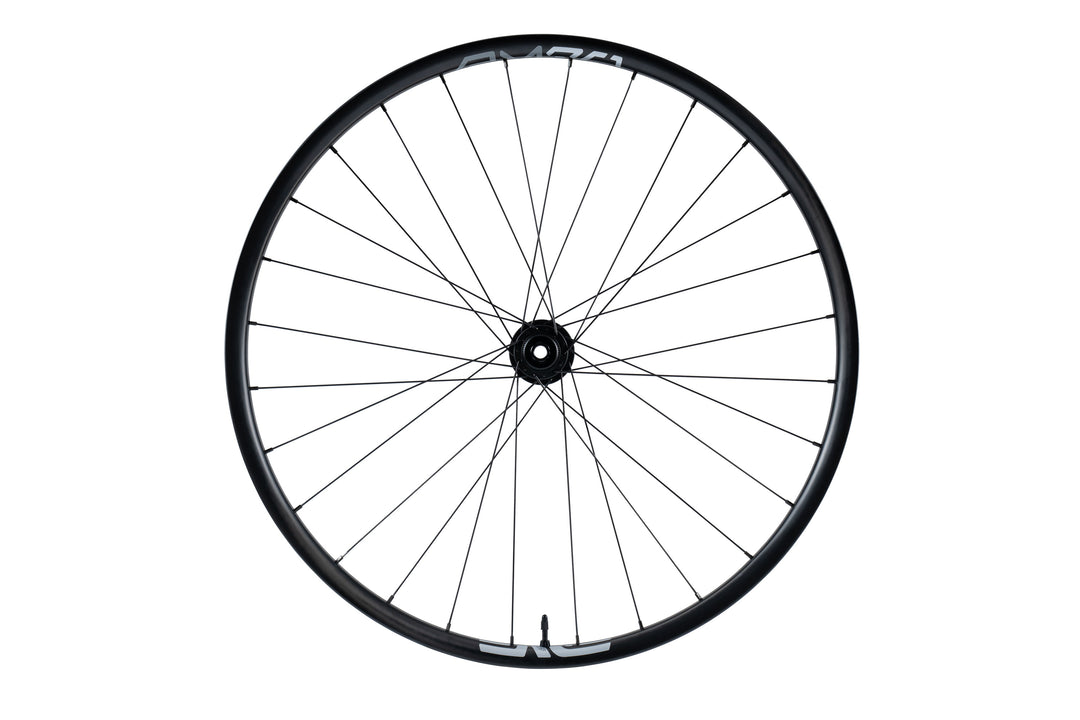

The AM30 is your one-wheelset quiver for lunch laps, park laps, and backcountry epics.
Wheel Size
Hub : Spacing
Freehub
  • Low stock - 10 items left
  • Inventory on the way
  • Application: Trail, All-Mountain
  • Inner Rim Width: 30mm
  • Lifetime Incident Protected
  • Starting at $1,400

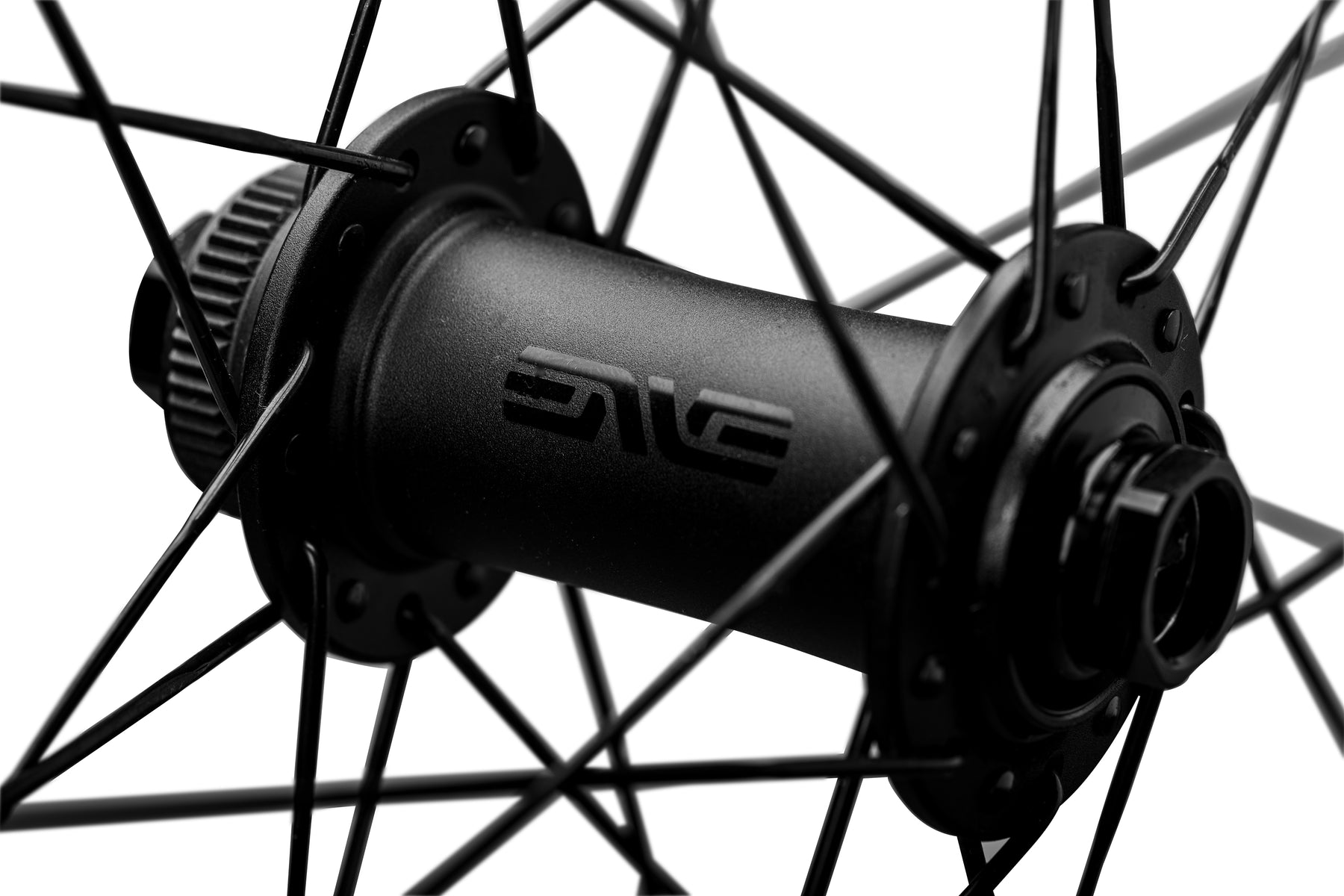

Hub Offerings Industry Nine 1/1
Spacing Front: 15x110 Boost | Rear: 12x148 Boost, 12x157 Superboost
Wheelsize 29", 27.5"

RIM SPECS FRONT REAR
Rim Depth 20mm 20mm
External Width 39mm 39mm
Internal Width 30mm 30mm
Hole Count 28 28
Effective Rim Diameter 27.5" 564mm
29" 605mm
27.5" 564mm
29" 605mm
Rim Offset 3.0mm 3.0mm
Recommended Tire Size 2.3 in - 2.6 in 2.3 in - 2.6 in
Max Tire Size 40 PSI 40 PSI

WEIGHTS FRONT REAR WHEELSET
29" Rim Weight 510g 510g 1020g
27.5" Rim Weight 470g 470g 940g
29" Wheelset w/ i9 1/1 Hubs 864g 1008g 1852g
27.5" Wheelset w/ i9 1/1 Hubs 812g 956g 1748g

Over a decade ago, ENVE (then EDGE) released the AM, a first-of-its-kind hand-built carbon mountain bike rim, strong enough to be ridden every day, on any trail.

The AM30 pays tribute to the past, while ushering in a new era of carbon rim performance developed on the back of 13 years crafting carbon for the demands of the modern all-mountain rider. With a modern rim shape, compliant-yet-snappy carbon laminate, tubeless optimization, anti-pinch flat technology, a 30mm internal width, lifetime guarantee, and a balanced all-mountain ride-tune, the AM30 is ready for anything you can throw at it.

ENVE HEADED DOWN A DIFFERENT ROUTE WITH THE AM30 WHEELS, AND IT PAID OFF…

PINKBIKE

ALL-MOUNTAIN RIDE TUNE

Built for Speed, Built for Comfort

With a unique shape and ride-tune, the AM30 balances compliance and vibration damping for all-day comfort, while retaining quick cornering, acceleration, and gravity-rated strength. Offset spoke holes balance spoke tensions to help preserve the wheels’ quickness and the spoke’s integrity – despite the rim’s additional compliance.

PINCH FLAT PROTECTED

The AM30 helps to prevent pinch flats and ruined rides with our patent-pending Wide Hookless Bead.

The Wide Hookless Bead dissipates impact energy preventing the rim from slicing the tire. This means you can pick the tires, casings, and pressures you want to run, instead of letting the fear of flats dictate these important decisions for you. The AM30 helps to prevent pinch-flats and ruined rides with our proven, patent-pending Wide Hookless Bead.

  • Run the tires you want
  • Run the pressures you want
  • Save weight - go faster

EXTERNAL MOLDED SPOKE HOLES & EXTERNAL NIPPLES

Reliability First, Serviceability Also First

  • Molded Spoke Holes (Patent #US 8,313,155) for more reliable wheel builds
  • Molded conical seats allow the nipples and spokes to articulate, preventing premature fatigue and failure
  • Asymmetric spoke holes for more balanced spoke tensions
  • External nipples for on-the-fly truing

We’ve expanded our patented process of molding spoke and valve stem holes to include external spoke holes and nipples. Because carbon fiber gets its strength from continuous fibers, we route the fibers around the holes without cutting them which increases the strength of each spoke hole and reduces the likelihood of frequent truing. Additionally, by molding the spoke and valve stem holes, our rims achieve a greater strength to weight ratio. Strong, light, and maintenance free.

USA MADE, PROTECTED FOR LIFE

It’s no secret that we at ENVE are proud of our U.S. based manufacturing capabilities. Like all our rims, the Foundation Collection and its AM30 are handmade and assembled in our Ogden, Utah based, state-of-the-art carbon wheel manufacturing facility.

The AM30 is covered under ENVE’s Lifetime Incident Protection program and 5 Year Factory Warranty.

ANY TRAIL, ANY TIME
The AM30 is your one-wheelset quiver for park laps, lunch laps, and backcountry epics. With its durable-yet-comfortable ride tune, the Foundation Collection’s AM30 is the perfect fit for your 29 or 27.5 all-mountain ride.
ENVE SHOWED THE WORLD THAT A MOUNTAIN BIKE WHEEL COULD BE CARBON–WE’RE STILL IMMENSELY PROUD OF THAT ACHIEVEMENT.
A MOUNTAIN BIKE WHEEL, HOWEVER, CAN BE SO MUCH MORE.
