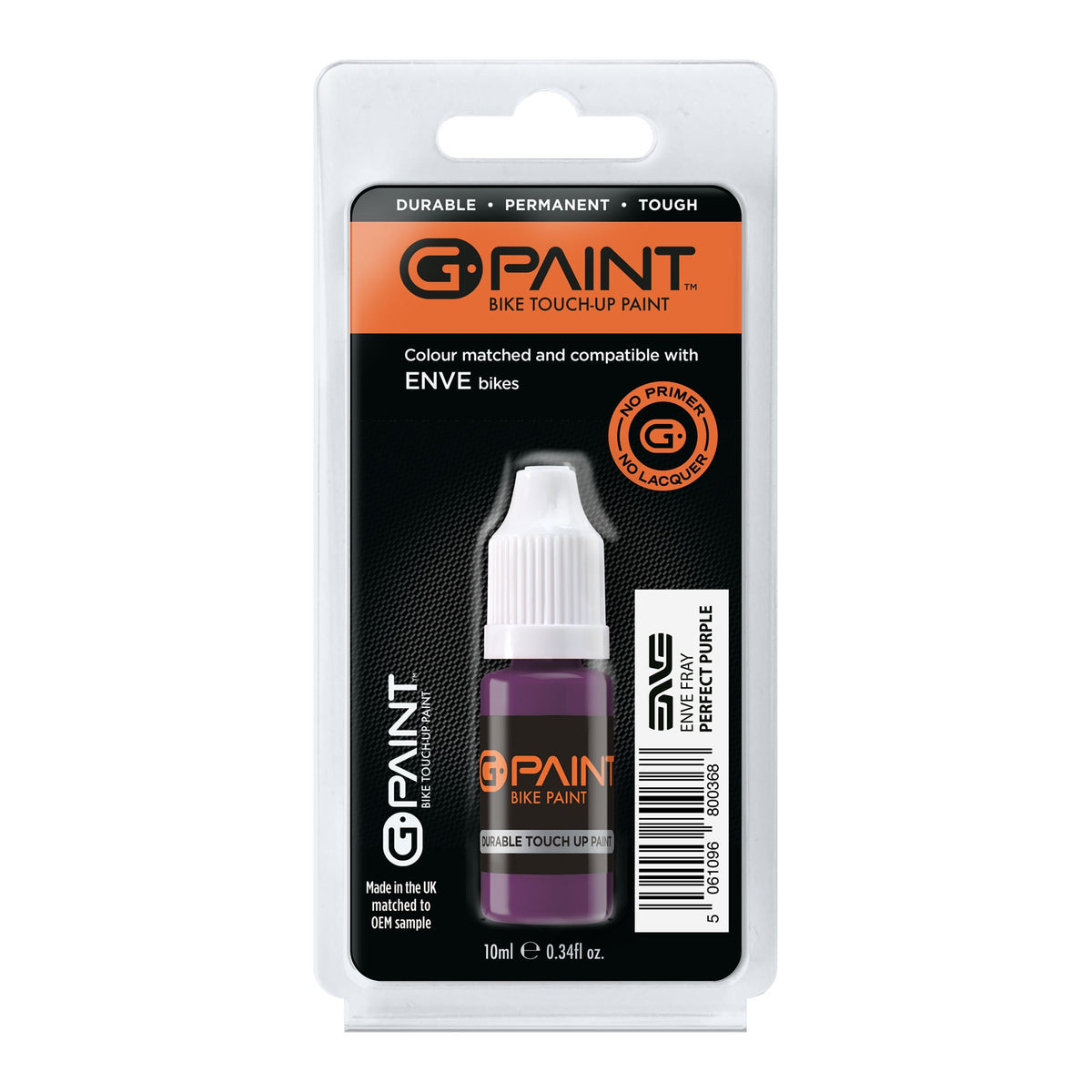

Pantone Perfection

Accidents happen - we've got you covered for when you get the occasional ding or scratch.

Replacement

We've all dropped a bolt and had it go MIA. You don't need to live without it. Find replacement small parts for your frame here.

We've got your back

Need help with something else? Find many FAQs already answered here.

FROM THE JOURNAL

Oct 29, 2026

Oct 26, 2026

Oct 19, 2026

Frame Material	ENVE M.O.D Carbon
Fork Material	ENVE M.O.D Carbon
Target Application	Road Race/Performance
Sizes (cm)	47, 50, 52, 54, 56, 58, 60
Fork Rake	55, 51, 47, 43, 39
Frame Size/Fork Rake	47cm/55, 50cm/51, 52cm/47, 54cm/47, 56cm/43, 58cm/43, 60cm/39
Frame Weight	850g +/- 2% (Size 56, Painted, No Hardware)
Headset	ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing	1.5″ IS52 Upper and Lower
Seat Post Diameter	ENVE Aero
BB Type	T47 Inboard Bearing
Brake Mount	Flat Mount
Front Axle	12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle	12×142 (Total Length: 168, TP:1.5, TL:14)
Minimum Tire Size	25c
Optimal Tire Size	27c-32c
Maximum Listed Tire Clearance	35c
Frame Routing	Internal

Shimano Mechanical 1x	Yes
Shimano Mechanical 2x	Yes
Shimano Electronic Di2 (1x/2x)	Yes
SRAM Mechanical 1x	Yes
SRAM Mechanical 2x	No (Melee requires continuous housing for FD)
SRAM AXS (1x/2x)	Yes
Campy Mechanical 1x	Yes
Campy Mechanical 2x	No (Melee requires continuous housing for FD)
Campy Wired EPS	No
Campy Wireless EPS	Yes

Fork	Fork is 160mm only
Frame	Rear brake/frame is 140mm or 160mm with adapter.

Frame Material	ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible
Fork Material	ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Target Application	All Road / Endurance / Mixed Surface / Sportif / Fondo
Sizes (cm)	47, 50, 52, 54, 56, 58, 60
Fork Rake	55, 51, 47, 43
Frame Size/Fork Rake	47cm/55, 50cm/55, 52cm/51, 54cm/51,
Frame Size/Fork Rake	56cm/47, 58cm/47, 60cm/43
Frame Weight	900g +/- 2% (Size 56, Painted, No Hardware)
Headset	ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing	1.5″ IS52 Upper and Lower
Seat Post Diameter	ENVE Aero
BB Type	T47 Inboard Bearing
Brake Mount	Flat Mount
Front Axle	12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle	12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size	27mm
Optimal Tire Size	31mm - 35mm
Maximum Listed Tire Clearance 1x	40mm
Maximum Listed Tire Clearance 2x	38mm
In-Frame Storage	Yes (2 Storage Bags included - 18.22 cubic cm each)
Frame Routing	Internal
Waterbottle Capacity	3
Top Tube Mounts	Yes
Fender Compatible	Yes
Wheel Size	700c

Handlebars	Gravel, SES AR, Compact, SES Aero Road
Stem	ENVE Aero, IN-Route System (80, 90, 100, 110, 120, 130)
Seatposts	ENVE Seatpost 27.2 300mm/400mm x 0mm Offset/25mm Offset - G Series Dropper Post 27.2

Fork	Fork is 160mm or 180mm with adapter.
Frame	Rear brake/frame is 140mm or 160mm with adapter.
