Name: Fray - Premium Force
Brand: ENVE Composites
Price: 10500.0 USD
Availability: InStock

Compare Build Kit Trims

Drivetrain

Wheelset

Handlebar

Saddle

Stem

Tires

Accessories

Fray - Frameset

$4,800.00

See Details

SRAM Red 2x AXS Kit in Box
SRAM RED 2x Power Meter Crankset

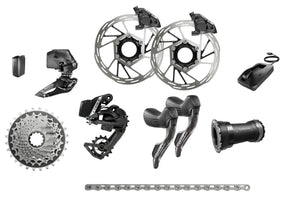

SRAM Force AXS 2x KIB

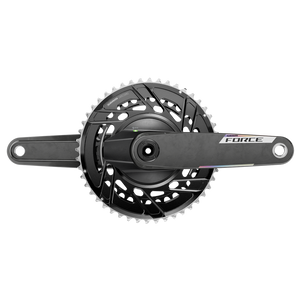

SRAM Force 2x Power Meter Crankset

N/A

SES 4.5 Pro

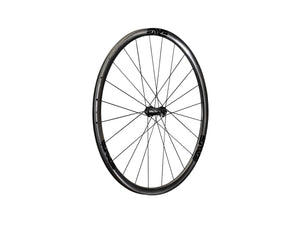

SES 2.3, SES 3.4, SES 4.5, SES 6.7

AR40

N/A

SES Aero Pro One-Piece Handlebar, SES AR Custom One-Piece Handlebar

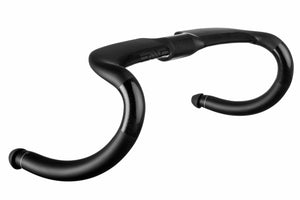

AERO IN-Route Handlebar, SES AR One-Piece Handlebar, SES AR Road IN-Route Handlebar, Compact Road IN-Route Handlebar

AERO IN-Route Handlebar, SES AR Road IN-Route Handlebar, SES AR One-Piece Handlebar, Compact Road IN-Route Handlebar

SES AR One-Piece Handlebar, SES AR Road IN-Route Handlebar, AERO IN-Route Handlebar, Compact Road IN-Route Handlebar

N/A

ENVE x Selle Italia Boost SLR Saddle

N/A

IN-Route Aero Road Stem, IN-Route High Rise Stem

IN-Route High Rise Stem, IN-Route Aero Road Stem

IN-Route Aero Road Stem, IN-Route High Rise Stem

N/A

SES Road Tire

N/A

ENVE UL Carbon Computer Mount
Water Bottle Cage x2
Handlebar Tape

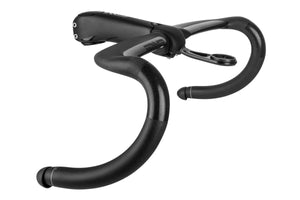

Adjustable Combo Mount, Aero Stem Computer Mount
Water Bottle Cage x2
Handlebar Tape

Aero Stem Computer Mount, Adjustable Combo Mount
Water Bottle Cage x2
Handlebar Tape

Adjustable Combo Mount, Aero Stem Computer Mount
Water Bottle Cage x2
Handlebar Tape

N/A

Real-World Fast™ aero optimization
Geometry optimized for 31mm - 35mm tires
Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x)
ENVE Cargo Bay integrated downtube storage allows in-frame storage solution
Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides
Aero tube shapes & design that complements SES rim shapes
Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain
Frame Weight 900g (Size 56cm Painted, No Hardware)

Frame Material	ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible
Fork Material	ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Target Application	All Road / Endurance / Mixed Surface / Sportif / Fondo
Sizes (cm)	47, 50, 52, 54, 56, 58, 60
Fork Rake	55, 51, 47, 43
Frame Size/Fork Rake	47cm/55, 50cm/55, 52cm/51, 54cm/51,
Frame Size/Fork Rake	56cm/47, 58cm/47, 60cm/43
Frame Weight	900g +/- 2% (Size 56, Painted, No Hardware)
Headset	ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing	1.5″ IS52 Upper and Lower
Seat Post Diameter	ENVE Aero
BB Type	T47 Inboard Bearing
Brake Mount	Flat Mount
Front Axle	12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle	12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size	27mm
Optimal Tire Size	31mm - 35mm
Maximum Listed Tire Clearance 1x	40mm
Maximum Listed Tire Clearance 2x	38mm
In-Frame Storage	Yes (2 Storage Bags included - 18.22 cubic cm each)
Frame Routing	Internal
Waterbottle Capacity	3
Top Tube Mounts	Yes
Fender Compatible	Yes
Wheel Size	700c

	47	50	52	54	56	58	60
Reach	365	371	377	383	389	396	403
Stack	522	540	556	573	591	610	633
Top Tube	510	524	539	552	565	581	599
Rake	55	55	51	51	47	47	43
Seattube Length(C to top)	426	445	465	480	502	519	529
Max Saddle Rail Height with 275mm Post	676	695	715	730	752	769	779
Max Saddle Rail Height with 350mm Post	701	720	740	755	777	794	804
Max Saddle Rail Height with 400mm Post	751	770	790	805	827	844	854
Seattube Angle	75	74.5	74	73.75	73.5	73.2	72.75
Headtube Angle	70.9	71.3	72	72	72.6	72.6	73.3
Headtube Length	107	125	137	157	172	194	215
Bottom Bracket Drop	78	78	78	76	76	74	74
Chainstay Length	415	415	415	415	415	417	420
Wheel Base	985	994	994	1006	1008	1024	1029
Front Center	577	586	591	598	600	613	616
Standover	699	718	738	756	777	797	824
Bottom Bracket Height (31mm Tire)	264	264	264	266	266	268	268
Trail (29mm Tire)	60.2	58	57.5	57.5	57.9	57.9	57.7
Trail (31mm Tire)	61.1	58.9	58.3	58.3	58.7	58.7	58.5
Trail (33mm Tire)	62	59.7	59.1	59.1	59.5	59.5	59.2
Trail (35mm Tire	62.8	60.6	59.9	59.9	60.3	60.3	60

COMPONENT COMPATIBILITY

Handlebars	ENVE IN-Route Recommended
Stem	ENVE IN-Route Recommended
Seat Posts	Aero Seatpost

DRIVETRAIN COMPATIBILITY

Shimano Mechanical 1x	Yes
Shimano Mechanical 2x	Yes
Shimano Electronic Di2 (1x/2x)	Yes
SRAM Mechanical 1x	Yes
SRAM Mechanical 2x	No (Fray requires continuous housing for FD)
SRAM AXS (1x/2x)	Yes
Campy Mechanical 1x	Yes
Campy Mechanical 2x	No (Fray requires continuous housing for FD)
Campy Electronic EPS	Not Compatible

Brake Rotors

Fork	Fork is 160mm only
Frame	Rear brake/frame is 140mm or 160mm with adapter.

Featured Video

"At its core, the Fray is a performance road bike, with incredible versatility that lends itself to forays onto mixed surfaces. In the absence of the Fray, there were those looking for an “all-road” solution from ENVE amongst our Melee and MOG offering. ENVE products are purpose-built, and the Fray embodies this ethos."

- Jake Pantone, ENVE VP of Product and Brand.

REAL-WORLD FAST

The MOG debuts ENVE’s Cargo Bay, an integrated downtube storage solution that makes efficient use of unused space for stashing your flat tire repair kit, windbreaker, or anything else you choose to carry. Under the Cargo Door, two Cargo Bags allow for 36 cubic inches/0.6 liters of storage. It’s a fast and simple storage solution that can be appreciated by racers and adventurers alike.

Developed in CFD and the wind tunnel, the Fray features refined tube shapes that have been tuned to complement our own SES™ rim shapes and deliver aerodynamic performance that is Real-World Fast™. Additional features such as the IN-Route System add to the Fray's slippery design.

Real-World Fast™ Defined:

Balanced for aero efficiency and weight savings
Tube shapes complement SES rim shapes
Integrated Front-End hides wires and brake

Optimized for All Roads

The ENVE IN-Route System routes wires and hoses through the bar, stem, and headset, where they’re secured using ENVE’s anti-rattle finishing kit – allowing them to remain silent, out of sight, and out of the wind. The Fray capitalizes on the conveniences of the IN-Route handlebar system while maximizing the aerodynamic benefits of the streamlined design.

INTEGRATED FOR SPEED

The ENVE IN-Route System routes wires and hoses through the bar, stem, and headset, where they’re secured using ENVE’s anti-rattle finishing kit – allowing them to remain silent, out of sight, and out of the wind. The Fray capitalizes on the conveniences of the IN-Route handlebar system while maximizing the aerodynamic benefits of the streamlined design.

Learn More

Cargo Bay Frame Storage

Borrowing from the MOG, the Fray also features ENVE’s Cargo Bay, an integrated downtube storage solution that makes efficient use of unused space for stashing your flat tire repair kit, windbreaker, or anything else you choose to carry. Under the Cargo Door, two Cargo Bags allow for 36 cubic inches/0.6 liters of storage. It’s a fast and simple storage solution that can be appreciated by racers and adventurers alike.

Rider specific fit and tune

At the foundation of performance is bike fit and geometry. If those two fundamentals are not established, all the engineering wizardry and space age materials in the world won’t save your ride. You need an optimized fit and tuned geometry to give you the confidence and comfort needed to reach your performance potential.

Offered in seven sizes with four fork rakes and giving you the opportunity to choose your bar model, bar width, stem length, stem rise, seatpost length and offset, the Fray has your ideal fit in mind. This ensures that all Frays, regardless of size, will deliver the same level of responsive, confidence inspiring handling required from a performance all road bike.
