Name: Adventure Fork
Brand: ENVE Composites
SKU: 200-2010-001
Price: 675.0 USD
Availability: OutOfStock

$675.00

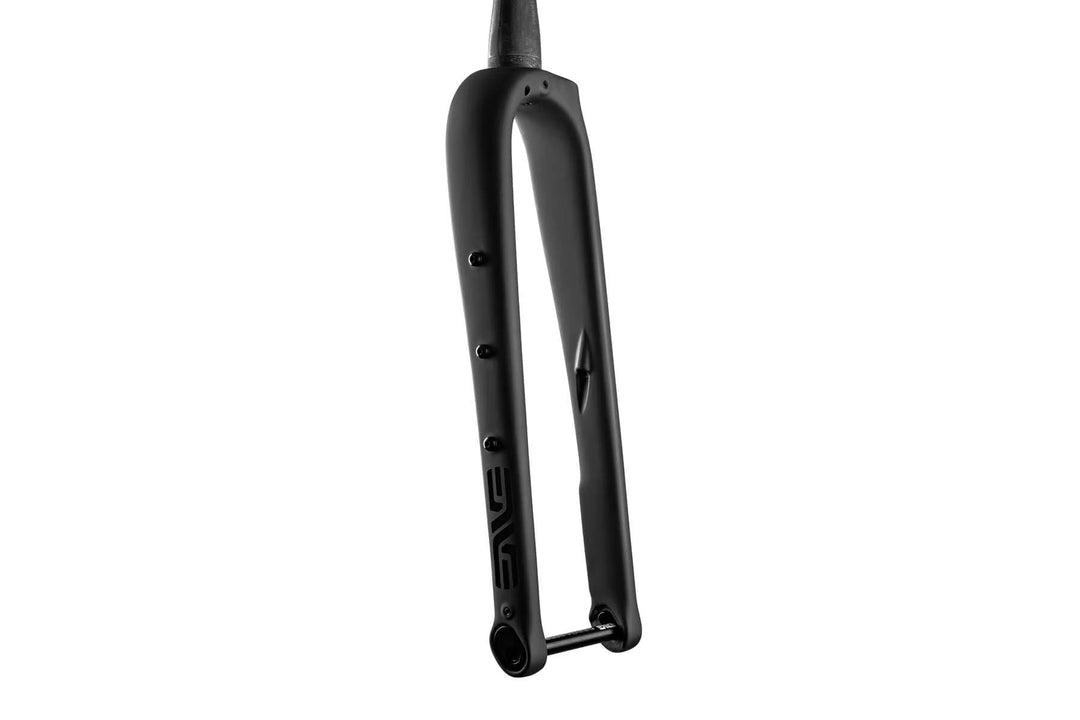

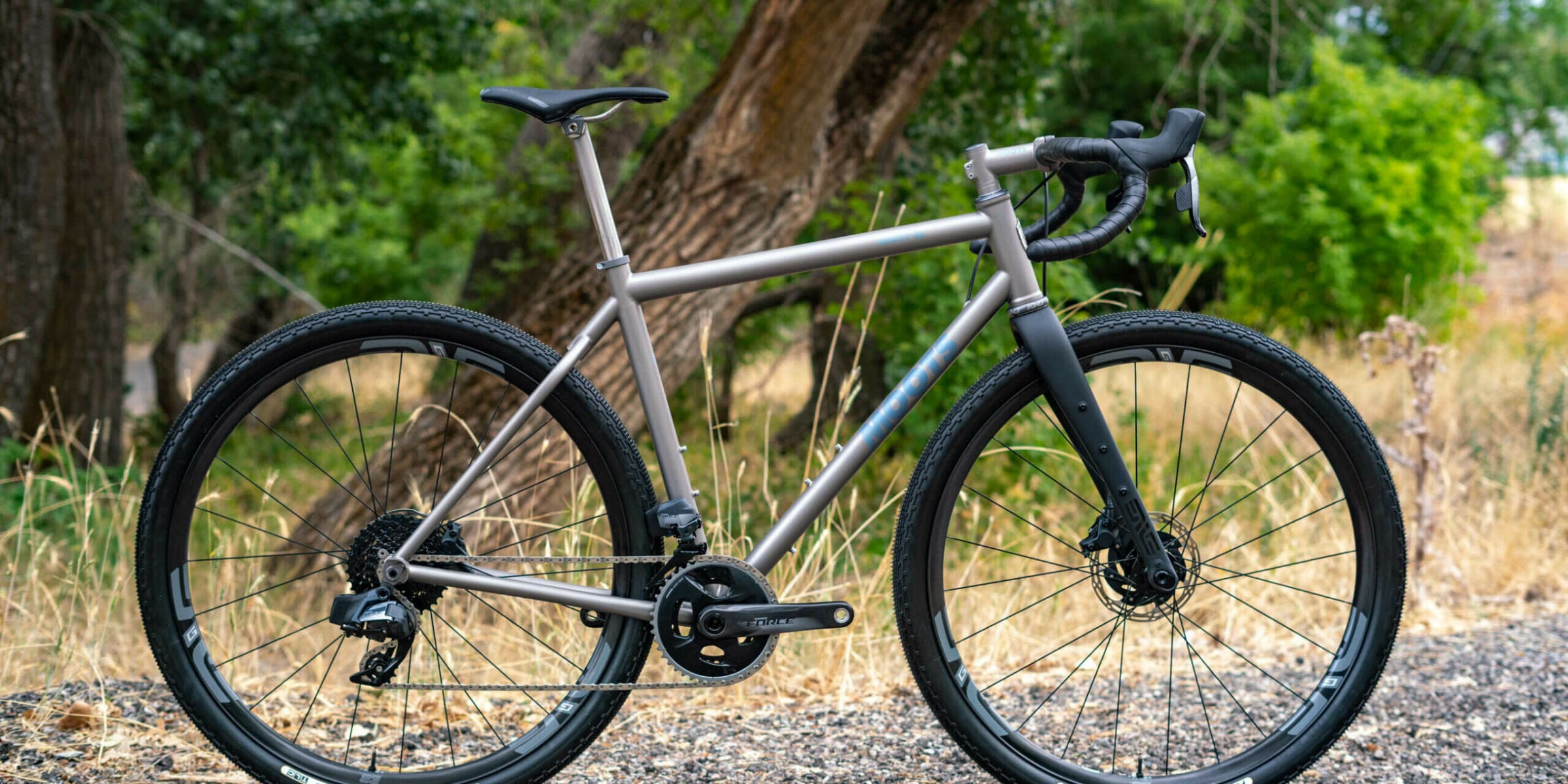

A carbon fork designed for bikepacking and endless exploration. Experience easier carrying of all possible accessories for everything from overnight endeavors to epic self-supported excursions with the ENVE Adventure Fork.

Rake

49/55.5mm Variable

In stock, ready to ship
Inventory on the way

Product Locator by Locally

[{"id":45111189537052,"title":"49\/55.5mm Variable","option1":"49\/55.5mm Variable","option2":null,"option3":null,"sku":"200-2010-001","requires_shipping":true,"taxable":true,"featured_image":{"id":41124194386204,"product_id":8267122213148,"position":1,"created_at":"2023-05-10T12:03:28-06:00","updated_at":"2023-05-10T12:03:28-06:00","alt":null,"width":1800,"height":1200,"src":"\/\/enve.com\/cdn\/shop\/products\/ENVE_AdventureFork_Hero.jpg?v=1683741808","variant_ids":[45111189537052]},"available":false,"name":"Adventure Fork - 49\/55.5mm Variable","public_title":"49\/55.5mm Variable","options":["49\/55.5mm Variable"],"price":67500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"00810024552375","featured_media":{"alt":null,"id":33477485986076,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1200,"width":1800,"src":"\/\/enve.com\/cdn\/shop\/products\/ENVE_AdventureFork_Hero.jpg?v=1683741808"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

The ENVE Adventure fork provides a lighter weight option for bikepackers and frame builders, while still maintaining reliability and strength.

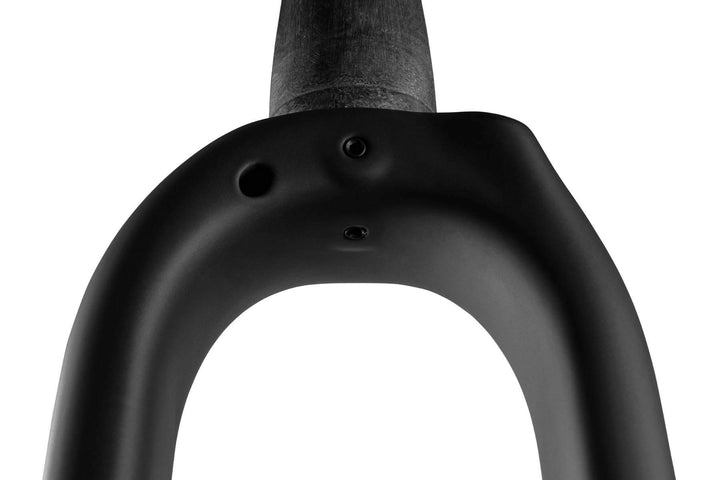

The dynamo light and charger routing is an integrated and protected solution to self-supported bike riders’ needs.

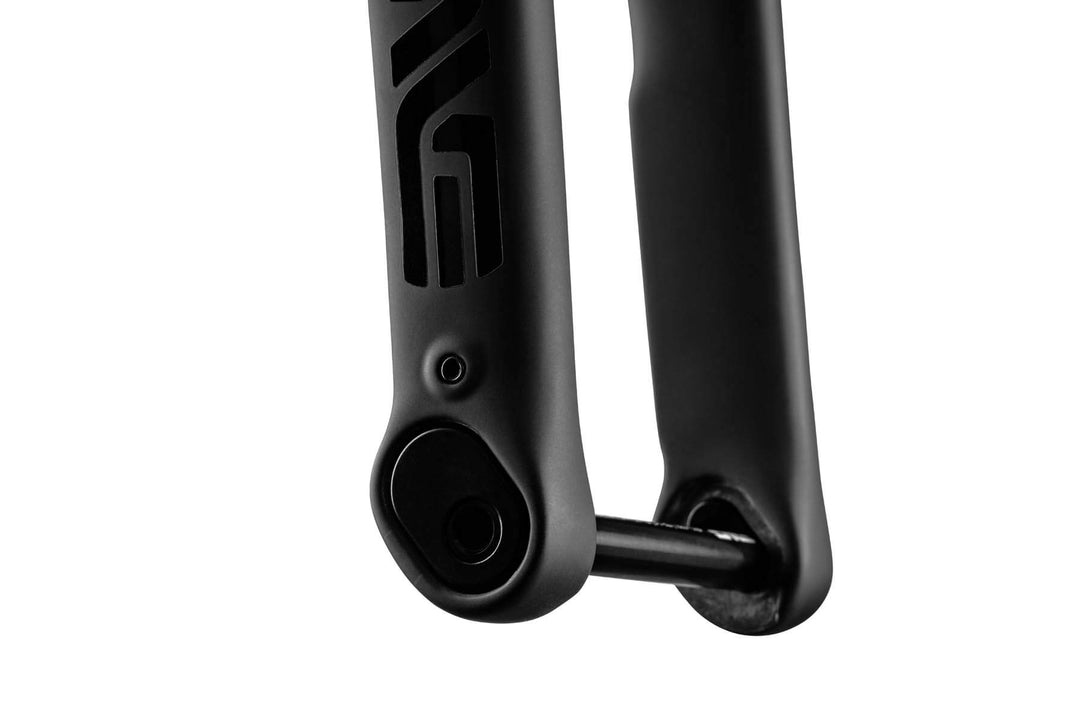

Finally, the fork chip option gives builders versatility in the fork by adjusting the axle-to-crown for different bike geometries for alternative bikepacking methods.

In a market that’s filled with heavy steel fork options, the ENVE Adventure fork offers bikepackers an opportunity to lighten their overall bike load through our trusted carbon fiber fork expertise.

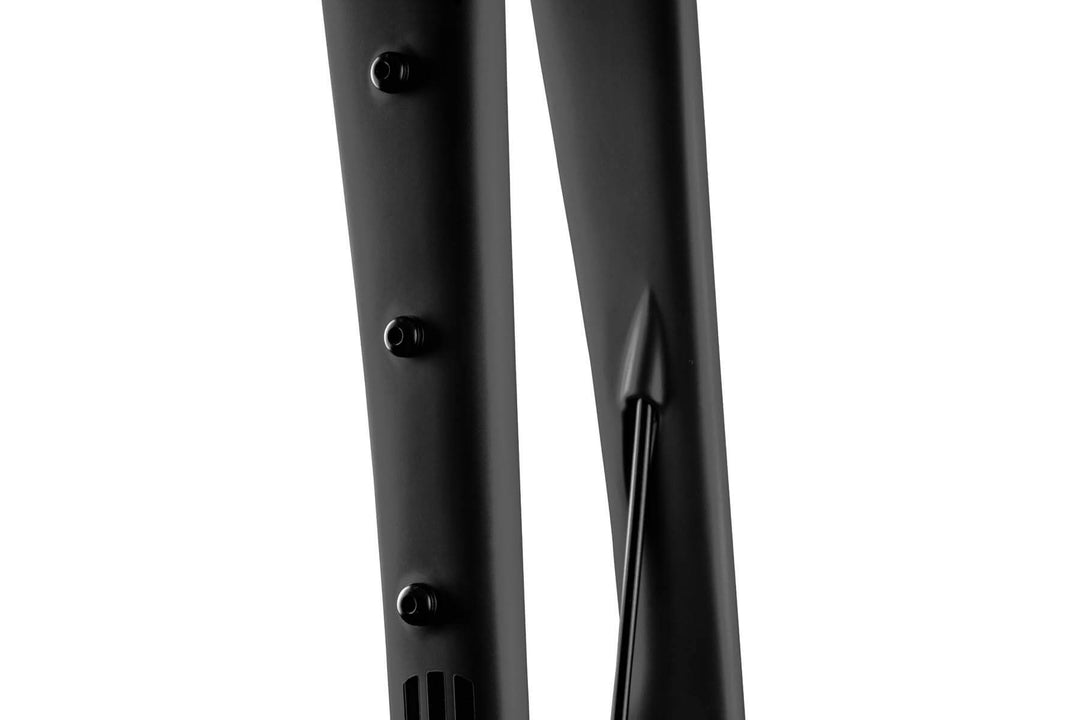

Three-Pack Accessory Mounts
Fender and Rack Mounts

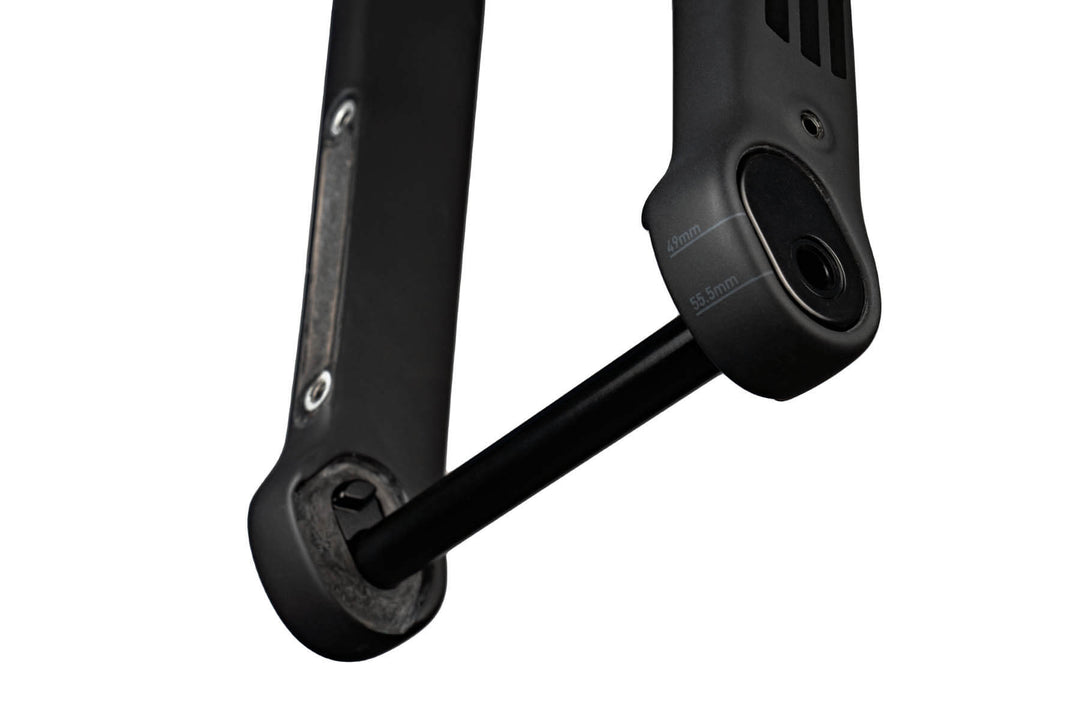

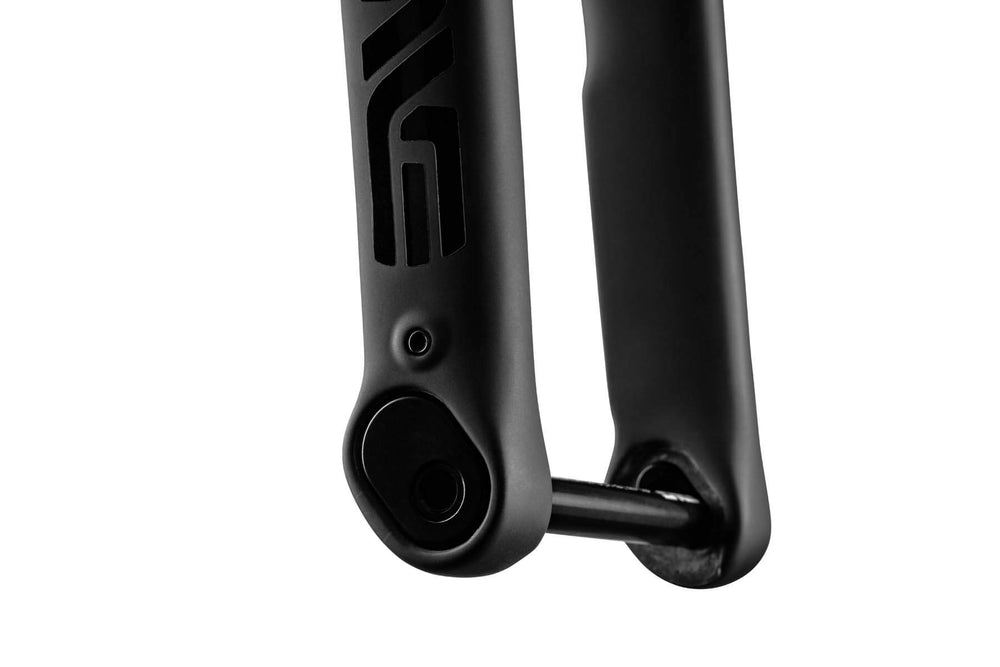

Reversible Drop-Out Chips for Adjustable Axle-To-Crown and Rake

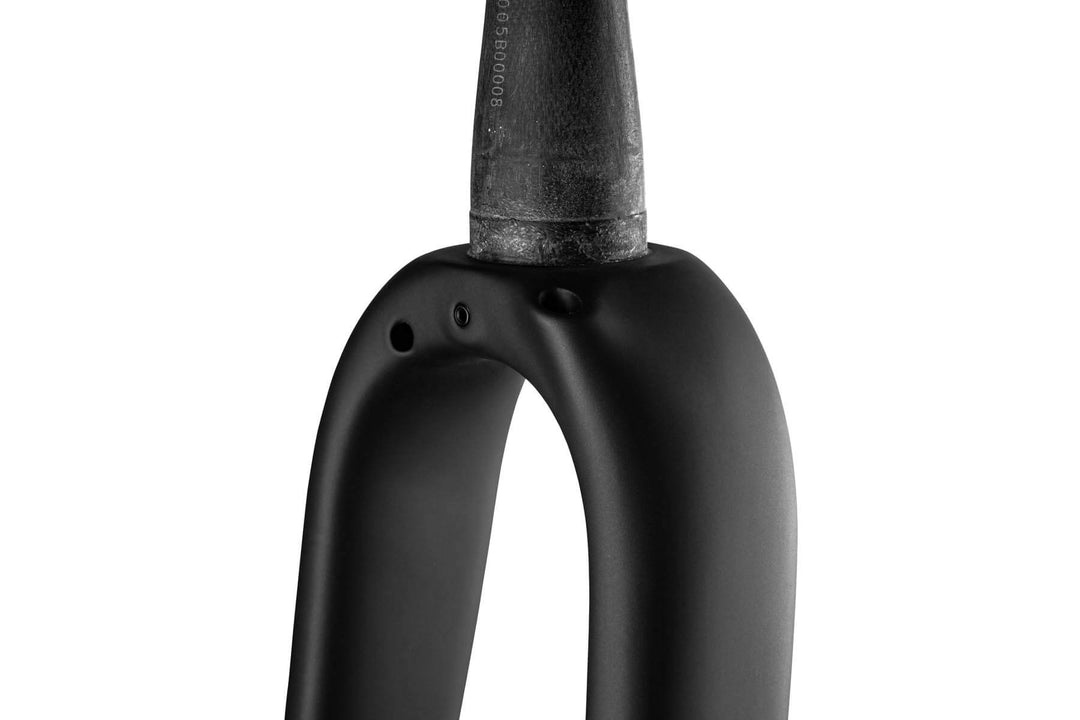

Internal Dynamo Routing for Lights and Electronics Charging
Axle Spacing 12 x 100mm
Compatible Rotor Sizes 140/160 (49mm rake), 160/180 (55.5mm rake)
Tire Clearance: 700 x 53mm (49mm rake), 700 x 58mm (55.5mm rake)

DROP-OUT CHIP POSITION	49MM RAKE	55.5MM RAKE
Material	Carbon	Carbon
Accessory Mounts	Yes (M5 Bolts)	Yes (M5 Bolts)
Weight	575g	575g
Steerer Tube Length	350mm	350mm
Steerer Tube Taper	1.125" to 1.5"	1.125" to 1.5"
Rake	49mm	55.5mm
Axle To Crown	398mm	406mm
Brake	Disc	Disc
Brake Mount	Flat Mount	Flat Mount
Low Mount Rack Capacity	18kg, 40lbs	18kg, 40lbs
Front Mount Rack Capacity	10kg, 22lbs	10kg, 22lbs
3-Pack Mount Capacity	6kg per Side (2kg x 3 bolts)	6kg per Side (2kg x 3 bolts)
Axle Compatibility	12x100mm	12x100mm
Compatible Rotor Sizes	140mm, 160mm	160mm, 180mm
Max Tire Clearance	29" x 2.1" (700x53) / 27.5" x 2.4"	29" x 2.3" (700x58) / 27.5" x 2.6"
Torque Spec: Steerer Tube	5.5nm	5.5nm
Torque Spec: Axle	8nm	8nm
Torque Spec: Brake Bolts	Defer to Brake Manufacturer	Defer to Brake Manufacturer
Torque Spec: Accessory Bolts	2nm	2nm
Product Sku:	200-2010-001	200-2010-001

*Steertube not compatible with star nuts, please use a compression plug
