100-2319-001


Real-World Gravity Wheel

The new M8 is a wheelset designed for aggressive gravity and eMTB riding, from enduro to downhill. It’s built off what we learned from our M9 race development, with additional weight considerations for longer days on the trail. The new shape and features deliver more traction, durability, and comfort which translates to more speed and less fatigue. It features ENVE’s patented Wide Hookless Bead pinch flat prevention technology and is built to the proven ENVE Innerdrive hub system.

Regular price $1,035.00
/
Wheel
Hub
Freehub
  • In stock, ready to ship
  • Inventory on the way

The unapologetic gravity wheel. The M8 has the durability of our downhill wheel without compromising weight. This wheel is suitable for chunkier trails and rated for any E-Bike use.

  • Enduro, Gravity Race, E-MTB
  • 29” - 1983g, 29”/27.5” - 1961g

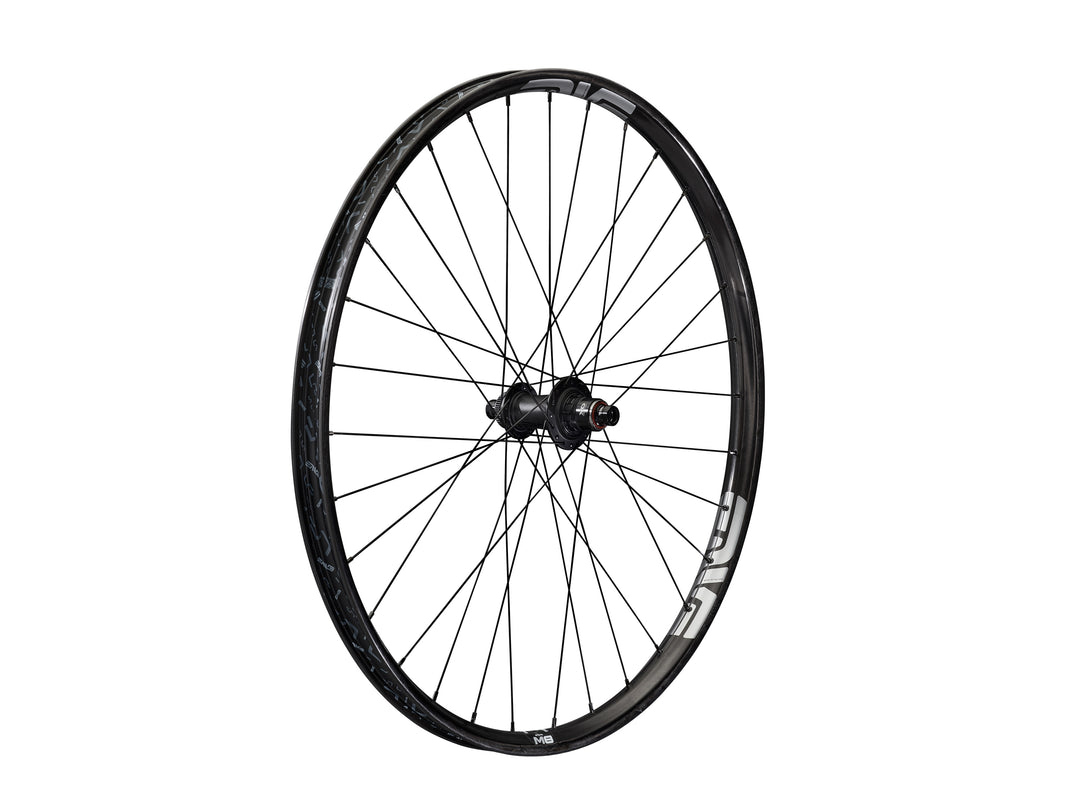

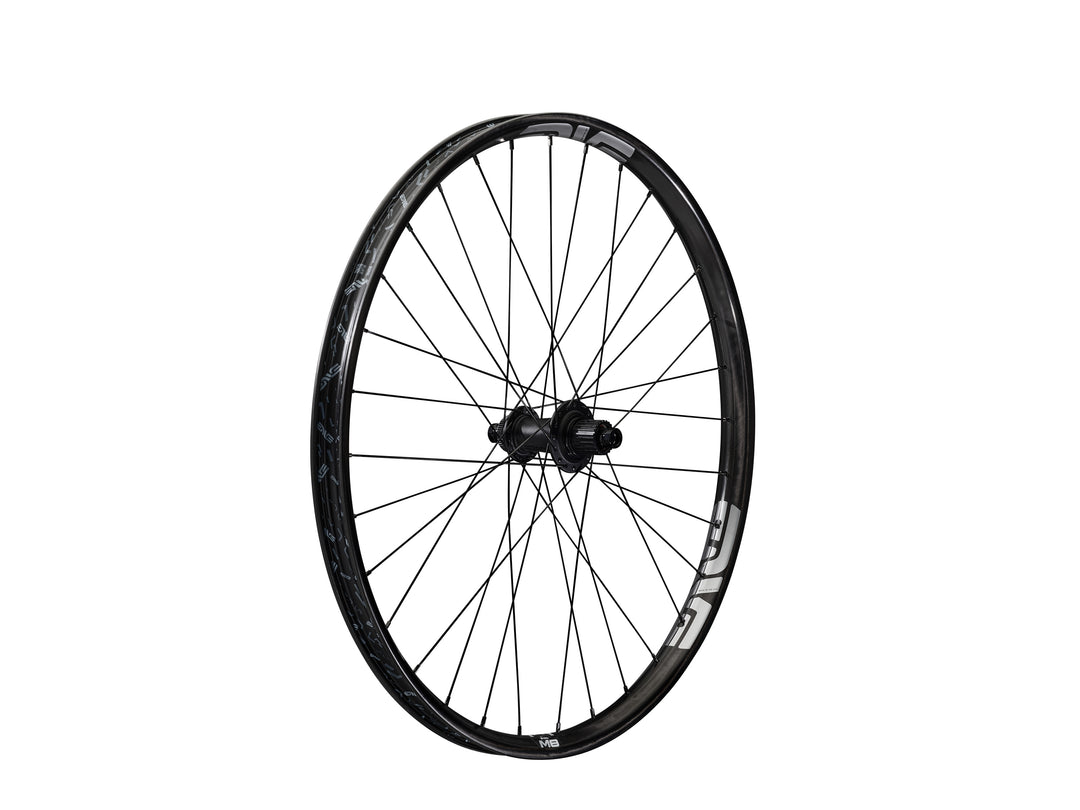

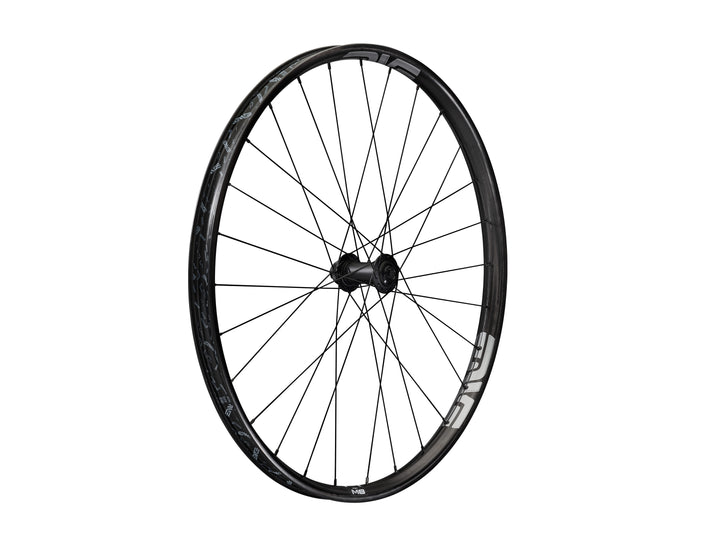

  • Front and rear-specific construction and geometry
  • Inner-Rim Width Front: 32mm
  • Inner-Rim Width Rear: 29mm
  • Wide Hookless Bead - Gravity-optimized anti-pinch flat protection
  • Brass external nipples with Nyloc thread locking insert
  • Round spokes
  • 28H Front, 32H Rear
  • Recommended for E-MTB
  • Backed by ENVE’s 5-year Factory Warranty and Incidental Damage Protection
ENVE M8
Front Rear
Rim Weight 590g 585g (29") 580g (27")
Wheelset Weight 1900g
Internal Rim Width 32mm 29mm
Hook Width 4.2mm 5.1mm
Hole Count 28 32
Depth 21mm 21mm
Pinch Flat Technology Wide Hookless Bead
Spokes Sprint J-Bend
Spoke Length (INNERDRIVE HUBS) 300 DS / 298 NDS 292 DS / 296 NDS (29") 274 DS / 276 NDS (27")
Nipples Alpina Nylock Brass External
Spoke Tension 100kgf
Brake Type Centerlock Boost / 6-Bolt 20mm x 110mm Centerlock Boost / 6-Bolt SuperBoost
Part Number 100-2319-001 FW 29 M8 28h INDR JB CL 15x110  100-2319-002 RW 29 M8 32h INDR JB CL 12x148 MS
100-2319-003 RW 29 M8 32h INDR JB CL 12x148 XD
100-2319-004 RW 29 M8 32h INDR JB CL 12x157 MS
100-2319-005 RW 29 M8 32h INDR JB CL 12x157 XD
100-2319-006 RW 27 M8 32h INDR JB CL 12x148 MS
100-2319-007 RW 27 M8 32h INDR JB CL 12x148 XD
100-2319-008 RW 27 M8 32h INDR JB CL 12x157 MS
100-2319-009 RW 27 M8 32h INDR JB CL 12x157 XD
100-2319-010 FW 29 M8 28h INDR JB 6B 20x110 100-2319-011 RW 29 M8 32h INDR JB 6B 12x157 MS
100-2319-012 RW 29 M8 32h INDR JB 6B 12x157 XD
100-2319-013 RW 27 M8 32h INDR JB 6B 12x157 MS
100-2319-014 RW 27 M8 32h INDR JB 6B 12x157 XD
MSRP (USD) $1,035.00  $1,265.00
  • Tubeless tape & valve pre-installed
  • QTY (2) - Spare Spokes + Nipples
  • Wheel Manual
  • Wheel Build Card

The M8 raises the bar for gravity wheel performance. In terms of objective improvements, the M8 is 73% more compliant than the previous generation M730, and 76% more compliant than the M930. In addition to compliance improvements, the M8 is 20% more impact-resistant when compared to the previous generation models.

“I’ve been on ENVE wheels for years. The progression has been insane. While they have always been incredibly reliable, the ride quality of this latest generation sets them apart. The M8 is an incredible new gravity wheel that gives me confidence in pushing limits.”

- Brendan Fairclough

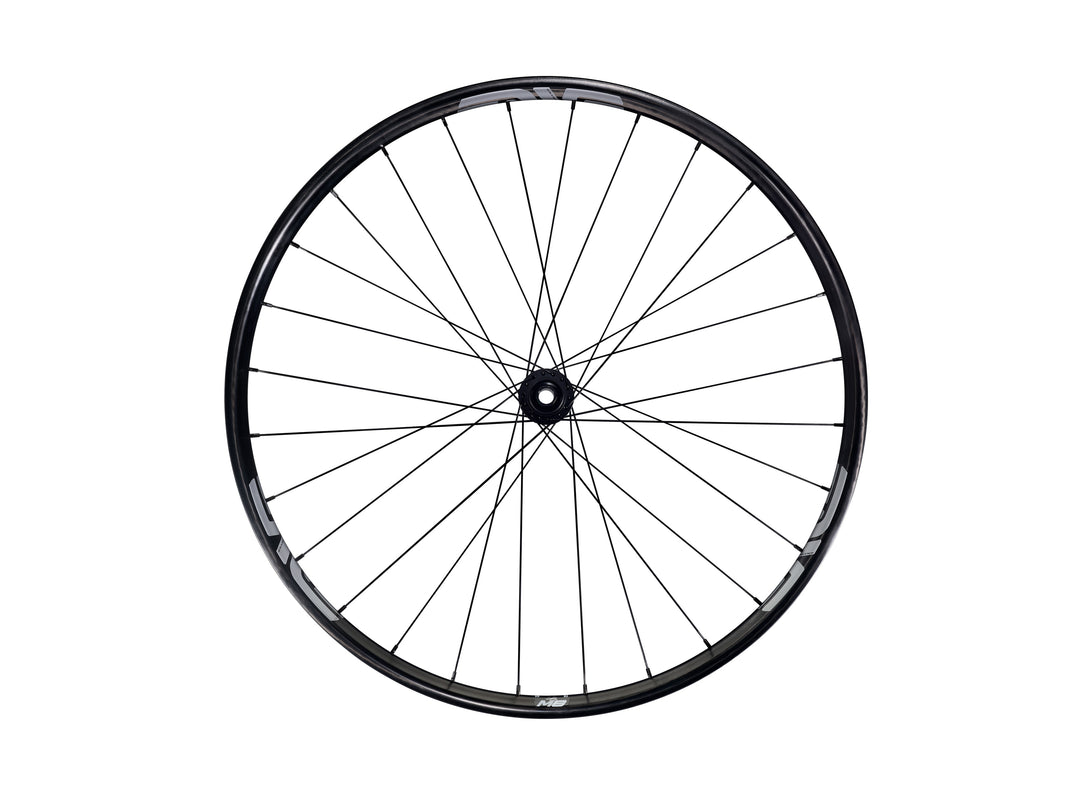

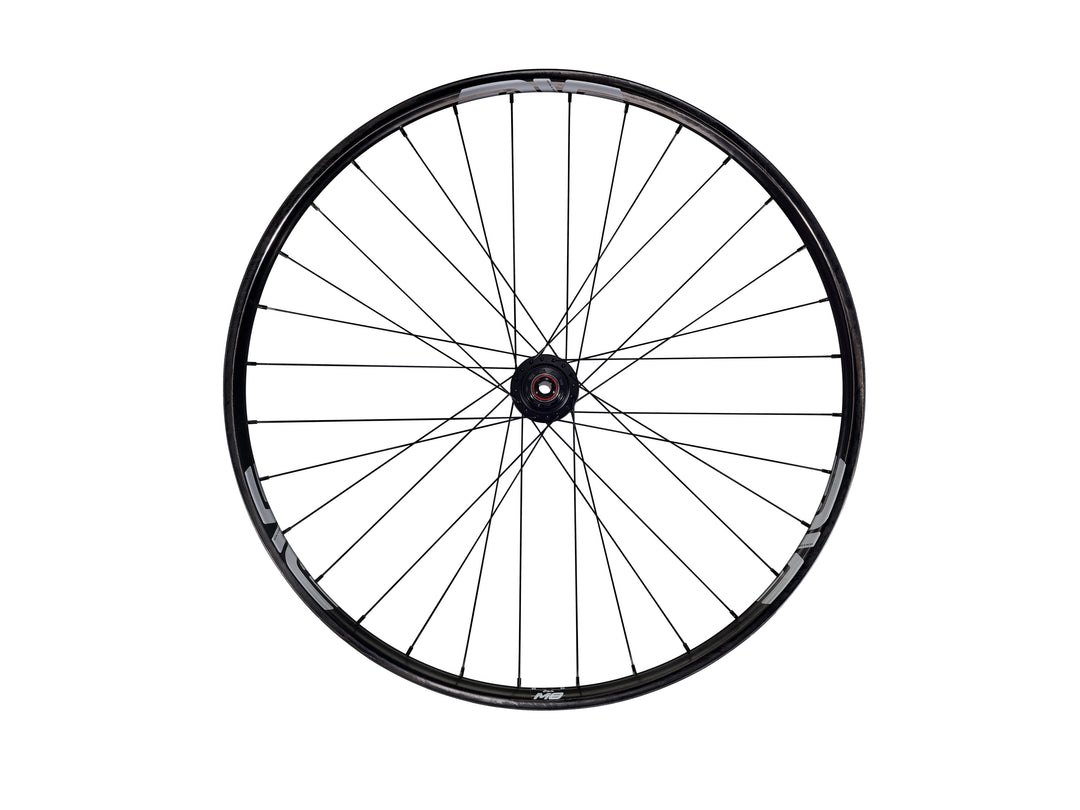

Like all new M Series wheelsets, the M8 features unique front and rear rim design. To accommodate the modern rider’s preference for 2.4-2.5” wide tires, the M8’s front rim features an internal rim width of 32mm, and the rear is 29mm. The front rim’s additional width and lighter construction maximize compliance, traction, and tire stability. The rear rim has been optimized for power transmission, tracking, and durability.

The M8 is built to ENVE’s all-new premium J-bend Innerdrive mountain bike hubs. Designed for reliability and user tunability, the multiple oversized ratchet options offer engagement as high as 3.6 degrees. Riders can choose from 40, 60, 80 (stock offering), or 100 tooth ratchets to suit their riding style and engagement preference.

Wide Hookless Bead Pinch Flat Protection

The M5 Pro, M6, and M8 wheels all feature ENVE’s patented Wide Hookless Bead technology built into the construction of the rim. It features a wide-rim bead to dissipate impact forces across a broader surface area when a tire is bottomed out on an object. This reduces the likelihood of pinch-flats by 50%. The rear rim features a wider rim wall than the front, as our data and real-world testing have found rear rims will pinch flat most often. The new M Series' compliant design further aids in pinch-flat reduction.

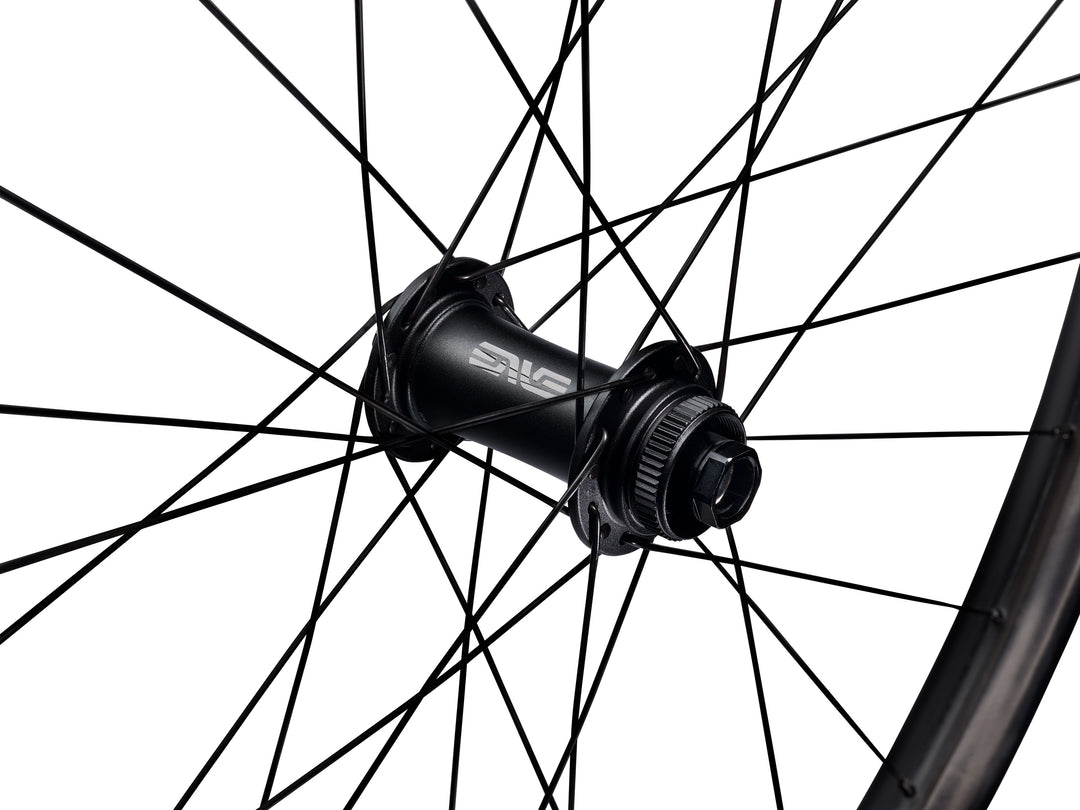

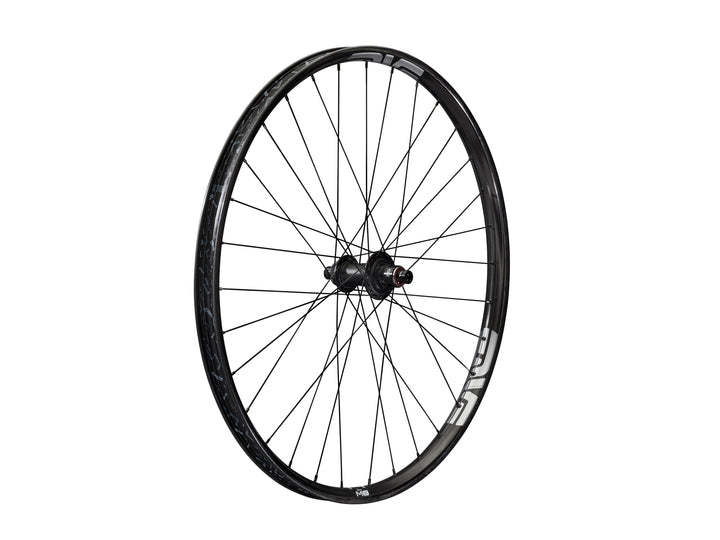

ENVE INNERDRIVE J-Bend Hubs

ENVE’s INNERDRIVE hub system refines and improves upon proven ratchet-driven technologies by increasing the diameter of the ratchets to allow for higher engagement without sacrificing durability. With options between 40, 60, 80, and 100t drive ratchet to tune the hub engagement rate to their preferences. With the highest tooth count, INNERDRIVE hubs will engage in as little as 3.6 degrees. Further benefits of the INNERDRIVE system include ENVE’s Perfect Preload system which delivers prolonged bearing life and minimal maintenance.

Unique Front and Rear Widths and Construction

Each wheel in the new M Series 5th Generation lineup features unique front and rear rim construction. The front rim is more compliant to allow the wheel and tire to contour over and around terrain, reducing the jarring sensations of repeated frontal impacts. The rear is firmer, to maximize power transmission and impact toughness. Widths are optimized for front and rear tires, with the front rim running slightly wider than the rear.

External Nyloc Locking Nipples

All M Series rims feature ENVE's patented molded spoke hole technology (US Patent # 8,313,155 B2), but now with external locking nipples. Each nipple is equipped with a Nyloc insert to keep spokes tensioned and wheels true.
