Name: M9 Pro
Brand: ENVE Composites
SKU: 100-2324-001
Price: 1035.0 USD
Availability: InStock

The all-new M9 Pro is ENVE’s flagship wheelset for gravity and downhill racing, embodying the pinnacle of athlete-driven development. While new to the market, it has already made a significant impact in the 2024 World Cup racing season, securing podium positions in every race and continuing the M Series' legacy as the most successful wheelset in World Cup downhill history.

Enduro, Gravity Race, E-MTB
29” - 2236g, 29”/27.5” - 2186g
Front and rear-specific construction and geometry
Inner-Rim Width Front: 29mm
Inner-Rim Width Rear: 29mm
Protective Rim Strip - Anti-pinch flat and tire pressure retention system
Brass external nipples with Nylock
Round spokes
29” F & R, 27.5” Rear Only
28H Front, 32H Rear
Recommended for E-MTB
Backed by ENVE’s 5-year Factory Warranty and Incidental Damage Protection

ENVE M9
	Front		Rear
Rim Weight	725g		720g (29") 715g (27")
Wheelset Weight	2200g
Internal Rim Width	29mm		29mm
Hook Width	6.2mm (Includes Protective Rim Strip)		6.2mm (Includes Protective Rim Strip)
Hole Count	32		32
Depth	22mm		22mm
Pinch Flat Technology	Protective Rim Strip
Spokes	Sprint J-Bend
Spoke Length (INNERDRIVE HUBS)	300 DS / 298 NDS		292 DS / 296 NDS (29") 274 DS / 276 NDS (27")
Nipples	Alpina Nylock Brass External
Spoke Tension	100kgf
Brake Type	Centerlock Boost / 6-Bolt 20mm x 110mm		Centerlock Boost / 6-Bolt SuperBoost
Part Number	100-2324-001	FW 29 M9 32h INDR JB CL 15x110	100-2324-002	RW 29 M9 32h INDR JB CL 12x148 MS
			100-2324-003	RW 29 M9 32h INDR JB CL 12x148 XD
			100-2324-004	RW 29 M9 32h INDR JB CL 12x157 MS
			100-2324-005	RW 29 M9 32h INDR JB CL 12x157 XD
			100-2324-006	RW 27 M9 32h INDR JB CL 12x148 MS
			100-2324-007	RW 27 M9 32h INDR JB CL 12x148 XD
			100-2324-008	RW 27 M9 32h INDR JB CL 12x157 MS
			100-2324-009	RW 27 M9 32h INDR JB CL 12x157 XD
	100-2324-010	FW 29 M9 32h INDR JB 6B 20x110	100-2324-011	RW 29 M9 32h INDR JB 6B 12x157 MS
			100-2324-012	RW 29 M9 32h INDR JB 6B 12x157 XD
			100-2324-013	RW 27 M9 32h INDR JB 6B 12x157 MS
			100-2324-014	RW 27 M9 32h INDR JB 6B 12x157 XD
MSRP (USD)	$1,035.00		$1,265.00

Tubeless tape & valve pre-installed
QTY (2) - Spare Spokes + Nipples
Wheel Manual
Wheel Build Card

The M9 Pro emerged from a rigorous four-year development cycle in collaboration with the Commencal/Muc-Off downhill program. The goal was to create a carbon rim that combined the damped, quiet ride of alloy with the strength and durability of carbon fiber. This new wheelset excels in contouring to the trail, providing a smoother, faster ride by handling bumps more effectively. Objective improvements in the M9 Pro are notable: it is 77% more compliant and 20% more impact-resistant than its predecessor, the M930. Its ride quality stands out in the market, and its durability is unmatched.

“The star of the show for me was actually the ENVE wheels. We dinged a lot of rims on this test. We hit the ENVEs into many things, but they were both comfortable, compliant and most importantly, in one piece by the end. Which is really, really good.”

- Henry Quinney, Pinkbike

A standout feature is ENVE’s patented Protective Rim Strip, a molded polymer strip that replaces traditional rim tape to create a tubeless seal. This strip acts as a bumper between the hard carbon rim and the tire’s soft rubber, reducing the risk of cuts and pinch flats. It also isolates the wheel and tire air chamber, ensuring tire pressure is maintained even if the rim is damaged.

tech & features

For E-MTB bike riders, the M9 Pro offers exceptional impact toughness and flat tire protection, making it a top choice for those seeking reliability and performance. The wheelset features identical front and rear rim design, though the carbon laminates differ between them.

Built with ENVE’s premium J-bend Innerdrive hubs for ease of spoke replacement, the M9 Pro is not only a top performer in downhill racing but also excels in E-MTB applications.

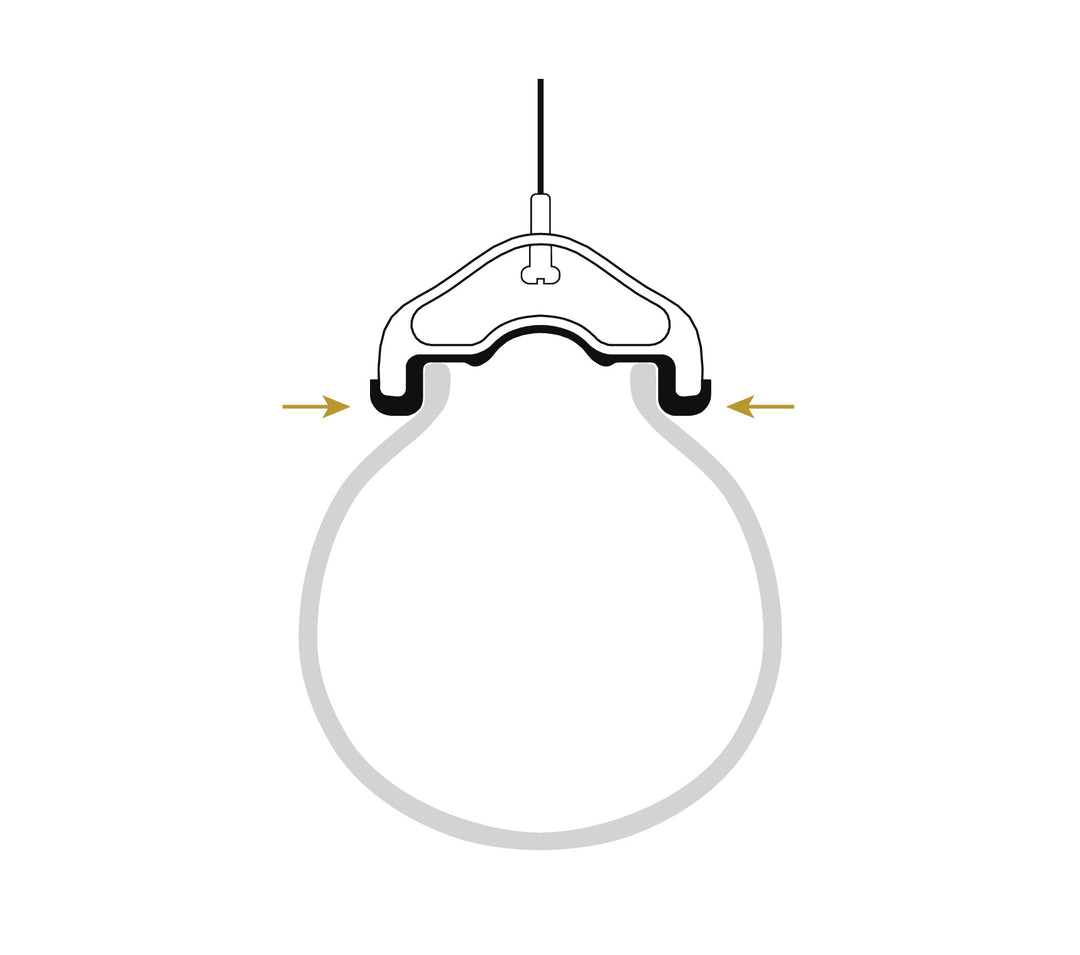

Patented Protective Rim Strip

The M9 Pro features ENVE’s patented Protective Rim Strip, a molded polymer strip that wraps around the rim, replacing rim tape to create a tubeless seal. It creates a bumper between hard carbon and the tire’s soft rubber to prevent the tire from being cut, making pinch flats nearly impossible. It also isolates the wheel and tire air chamber, and as a result, if the carbon rim structure is damaged, the tire’s air pressure is maintained. This feature alone has allowed ENVE’s gravity athletes to ride the pressures they want, with the tires they want, in full confidence that they can ride the fastest most efficient lines from top to bottom.

ENVE INNERDRIVE J-Bend Hubs

ENVE’s INNERDRIVE hub system refines and improves upon proven ratchet-driven technologies by increasing the diameter of the ratchets to allow for higher engagement without sacrificing durability. Riders have the option of choosing between a 40, 60, 80 (stock offering), and 100t drive ratchet to tune the hub engagement rate to their preferences. With the highest tooth count, INNERDRIVE hubs will engage in as little as 3.6 degrees. Further benefits of the INNERDRIVE system include ENVE’s Perfect Preload system which delivers prolonged bearing life and minimal maintenance.

Learn More on Innerdrive Hubs

Unique Front and Rear Construction

Each wheel in the new M Series 5th Generation lineup features unique front and rear rim construction. The front rim is more compliant to allow the wheel and tire to contour over and around terrain, reducing the jarring sensations of repeated frontal impacts. The rear is firmer, to maximize power transmission and impact toughness. Even rims that look identical to the naked eye feature unique carbon layups and geometry details to truly dial in ride quality.

External Nyloc Locking Nipples

All M Series rims feature ENVE's patented molded spoke hole technology (US Patent # 8,313,155 B2), but now with external locking nipples. Each nipple is equipped with a Nyloc insert to keep spokes tensioned and wheels true.
